This set is specially developed for rough terrains.
Maximum load distributed over 4 wheels at 4km/H: 9,000 KG
Maximum load capacity per wheel at 4km/H: 3,000 KG

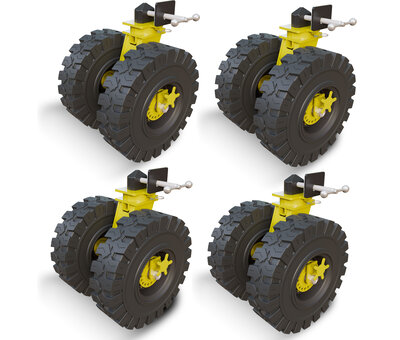

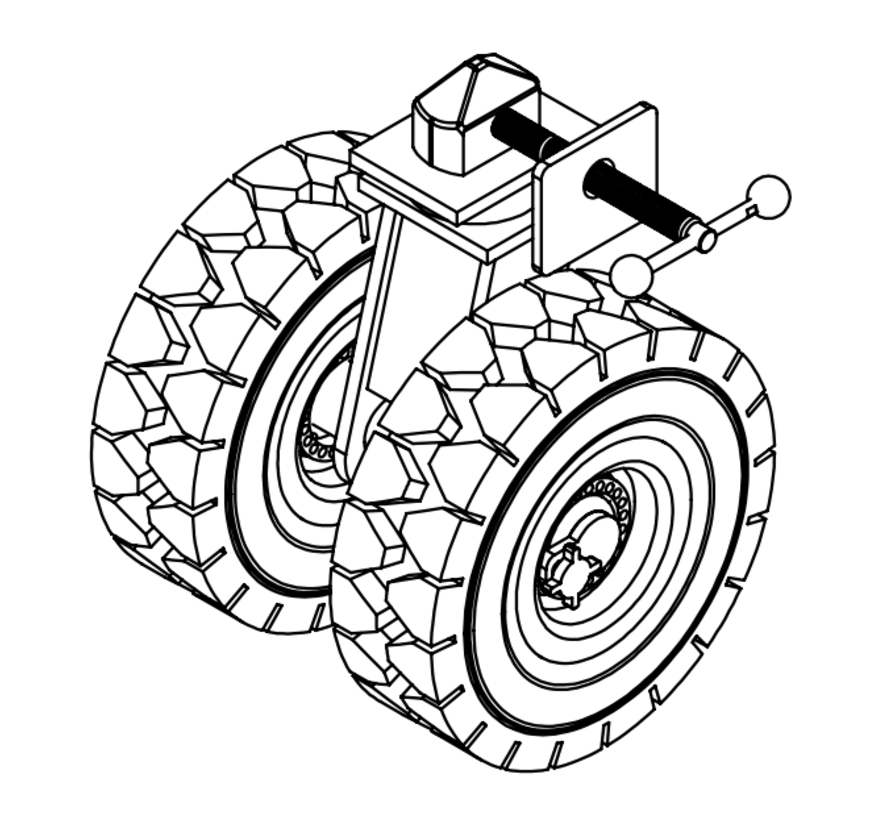

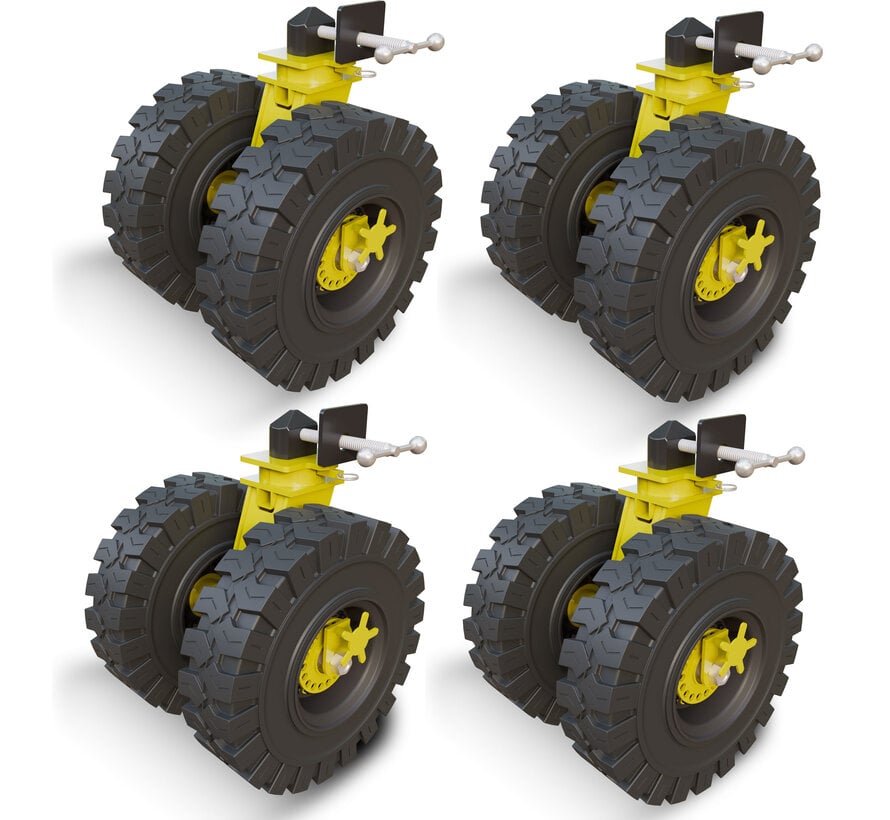

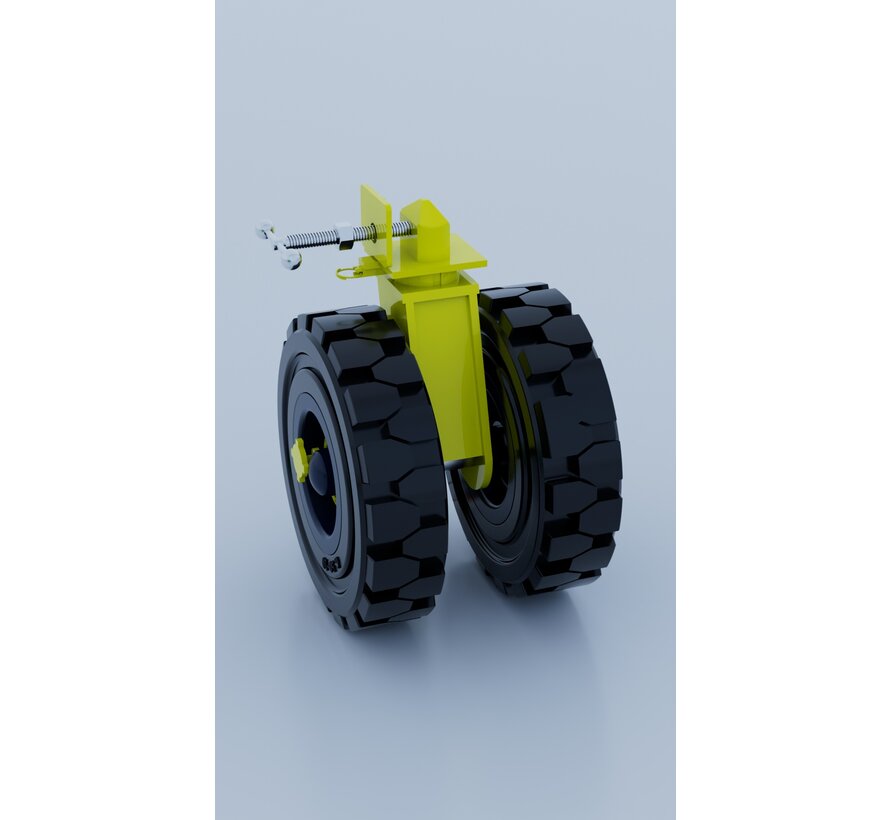

NEW 2024 development. Set of 4 wheels: 12150M412X4
This is a product update because we got many request we improved the product with the following benifits:

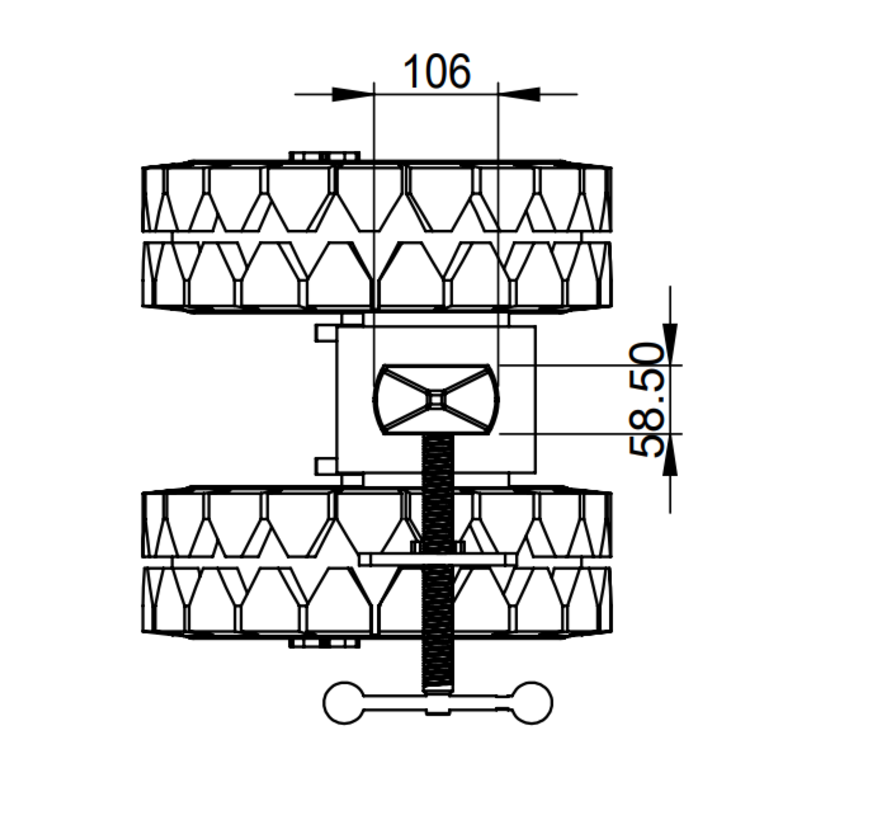

- Improved clamping system to lock into ISO1611 corner castings which are present on all sea shipping containers.
- Load capacity of one set of 4 wheels is now 9.000KG at 4 KM/H

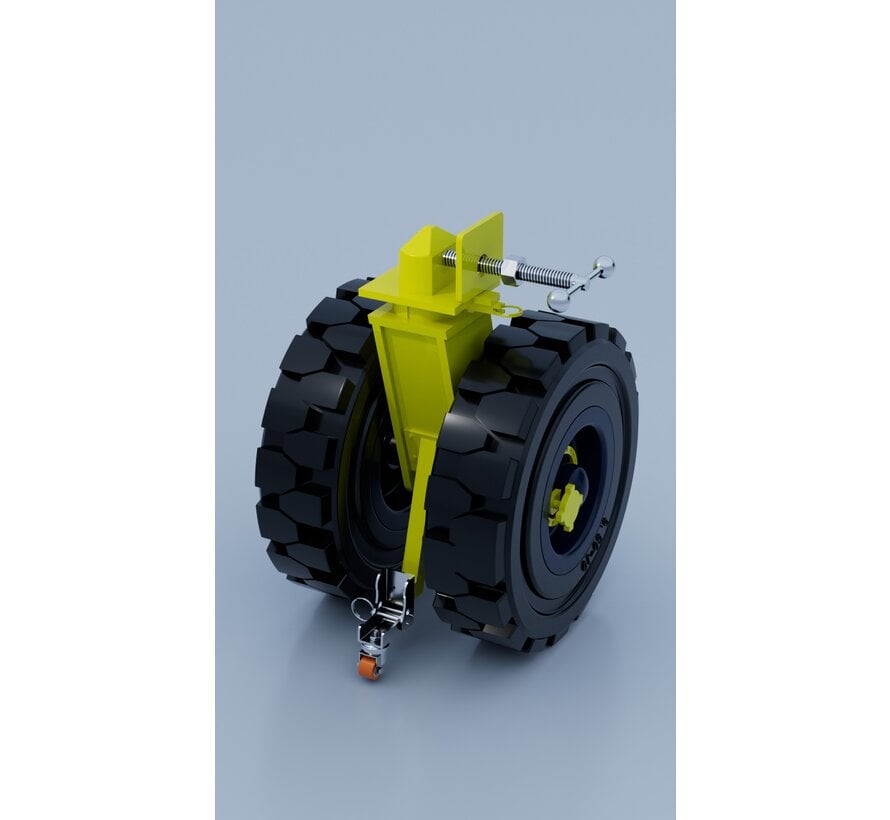

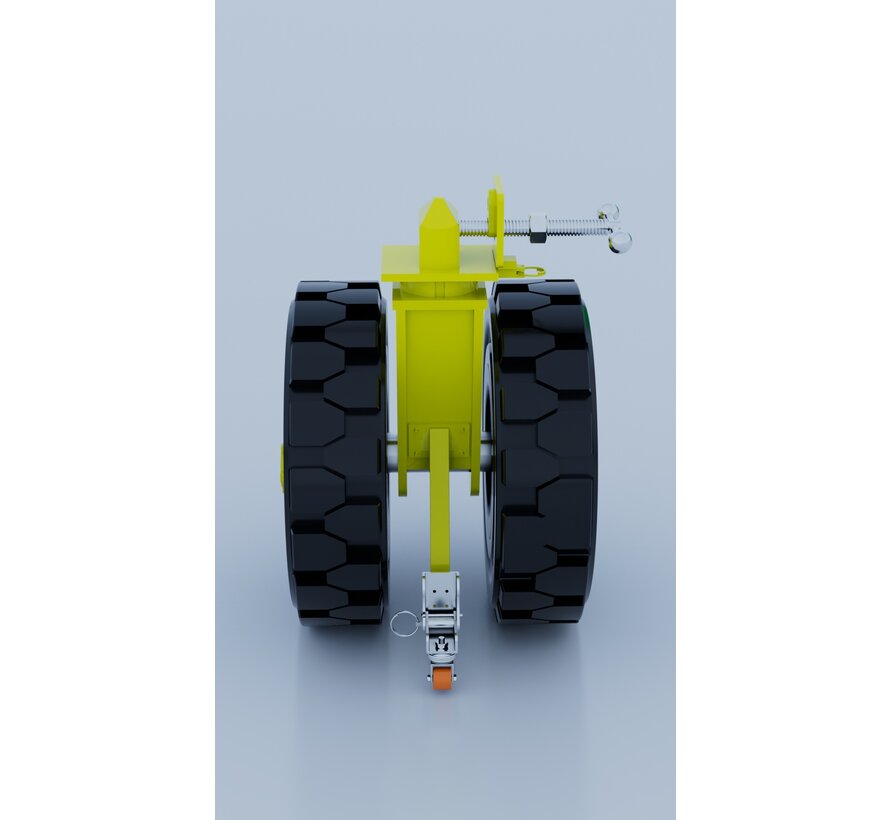

- The wheels are supplier with a wheelbrake system.
- Improved design

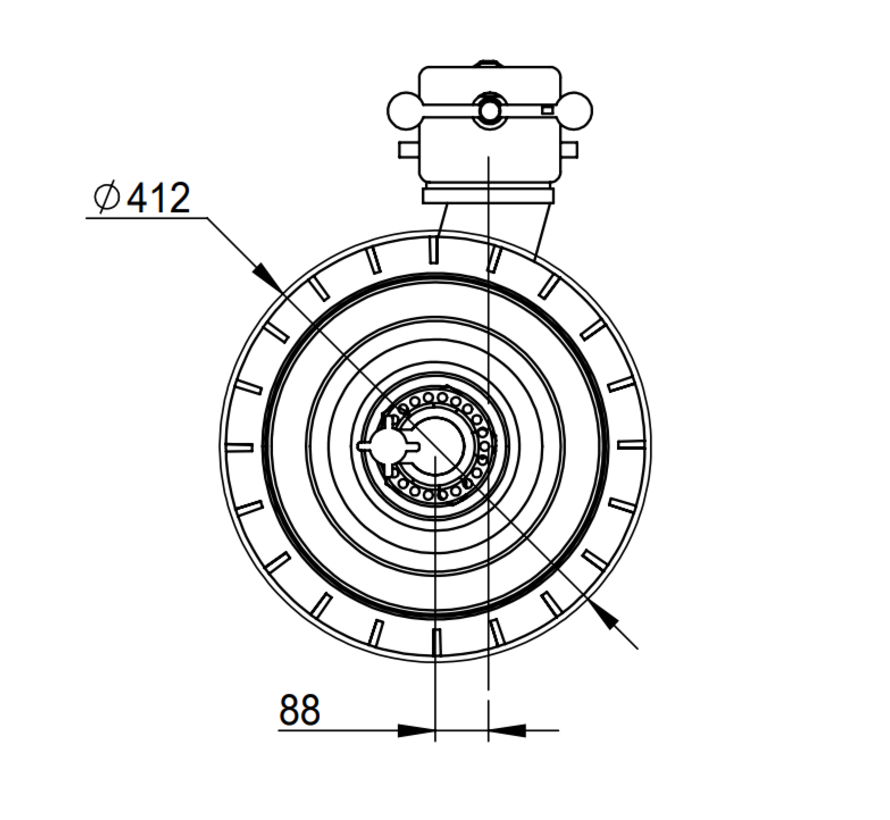

This product can be used under all platforms which have ISO1161 corner castings, like intermodual freight containers. The solid rubber industrial tyres with a diameter of 406mm make them suitable for the more rough terrains.
We understand that different applications require different wheel sizes and load capacities to perform optimally. To meet these requirements, we offer a range of technical options regarding wheel diameter, wheel width, wheelbase width, overall height, and max load capacity at 4km/h. With a max load distributed over four wheels of up to 10,000 kg (2,800 kg per single wheel) our container castors have been designed with superior technical features to ensure reliable performance under any challenging conditions
*ISO 1161:2016 establishes the basic dimensions and the functional and strength requirements of corner and intermediate fittings for series 1 freight containers,
On request can be delivered in any RAL colour
