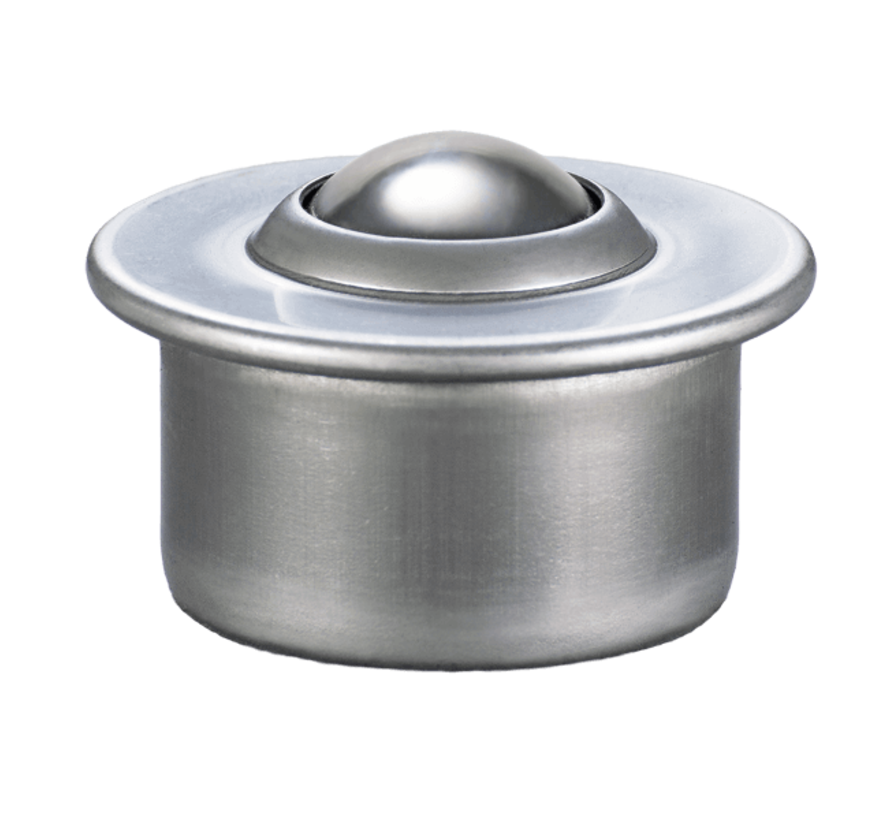

Ball jar Full stainless steel 22mm, 90 kg

Product description

Ball unit completely stainless steel, 22mm, 90 kg load capacity

Push-fit for quick installation and replacement, with only one-sided access to the mounting surface. Compensate irregularities in the diameter of the seat bore using optional (spring steel) 'K-clips' or (stainless steel) 'C-clips'.


Call or email us for advice, or request a quote directly.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Ball jar Full stainless steel 22mm, 90 kg

Ball unit completely stainless steel, 22mm, 90 kg load capacity

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU OLA222220
  • EAN 8718116211044

Specifications

  • Load capacity (kg) 90
  • Fitting Flange mounting
  • Dw: Ball diameter 22
  • Load Ball material Stainless steelAISI 420 52-58RC
  • Material support balls Stainless steel AISI420 (52-58RC)
  • Housing material stainless steel AISI 304

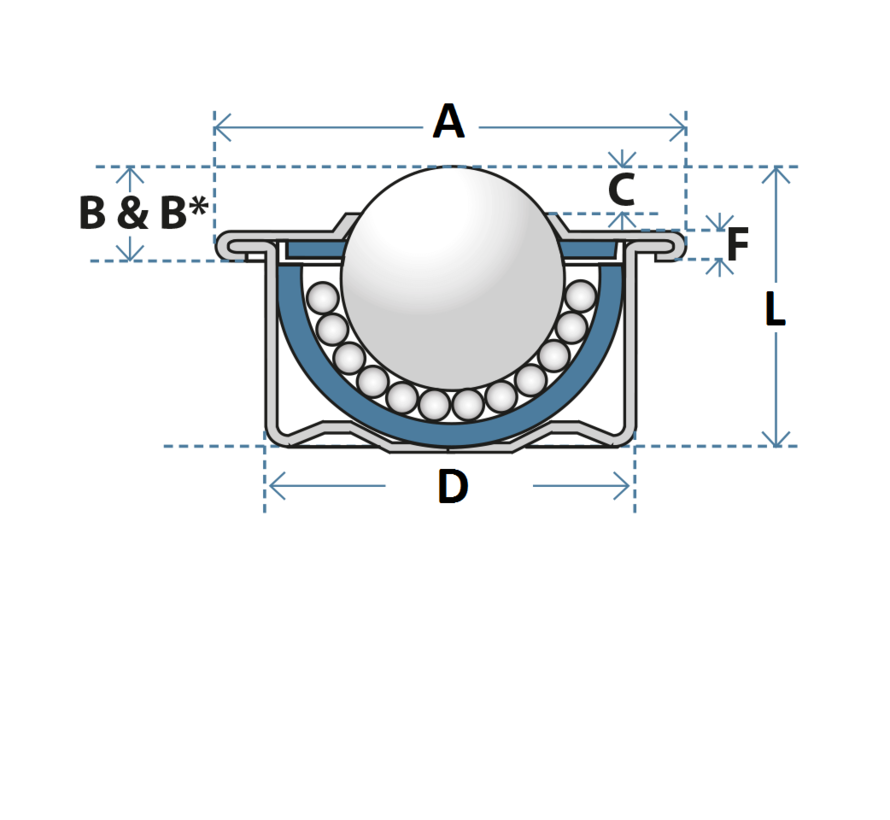

  • A: maximum diameter 45
  • B: working height of ball 10.1
  • C: ball exposure above outer ring 3.9
  • D: body diameter 36
  • F: flange thickness 2.9
  • L: overall height 29.5
