Ball jar steel 15mm, 60 kg

Product description

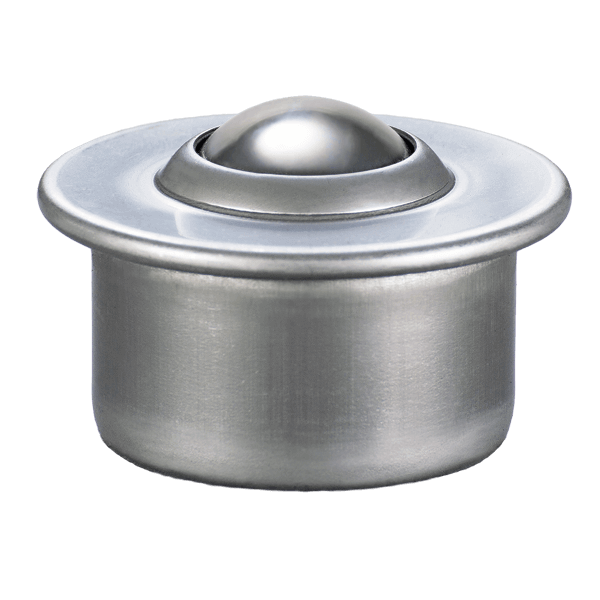

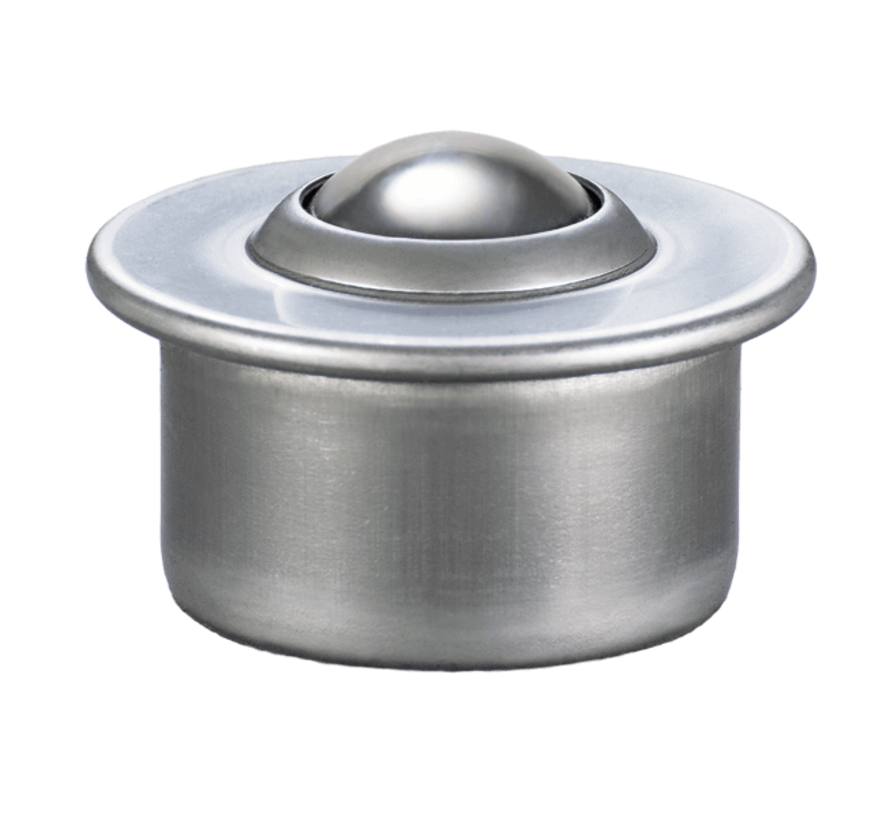

Steel ball unit 15mm, 60 kg load capacity

Push-fit for quick installation and replacement, with only one-sided access to the mounting surface. Compensate irregularities in the diameter of the seat bore using optional (spring steel) 'K-clips' or (stainless steel) 'C-clips'.


Call or email us for advice, or request a quote directly.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Ball jar steel 15mm, 60 kg

Steel ball unit 15mm, 60 kg load capacity

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU OLA111150
  • EAN 8718116210856

Specifications

  • Load capacity (kg) 60
  • Fitting Flange mounting
  • Dw: Ball diameter 15
  • Load Ball material Carbon steel 60-66RC
  • Material support balls Steel 60-66RC
  • Housing material Galvanised steel

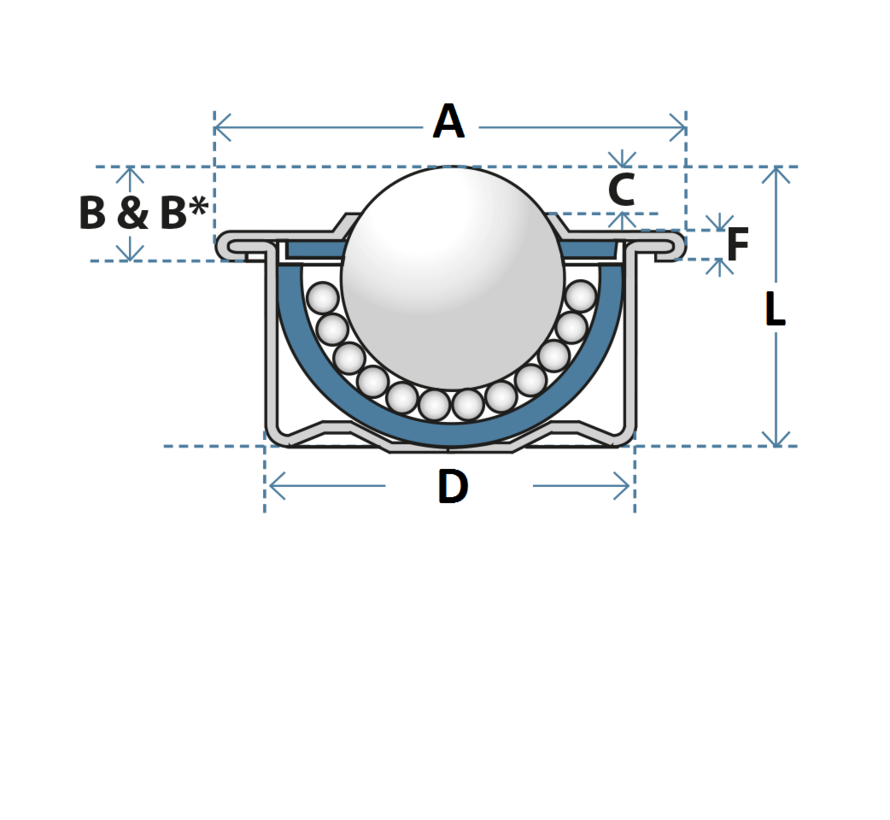

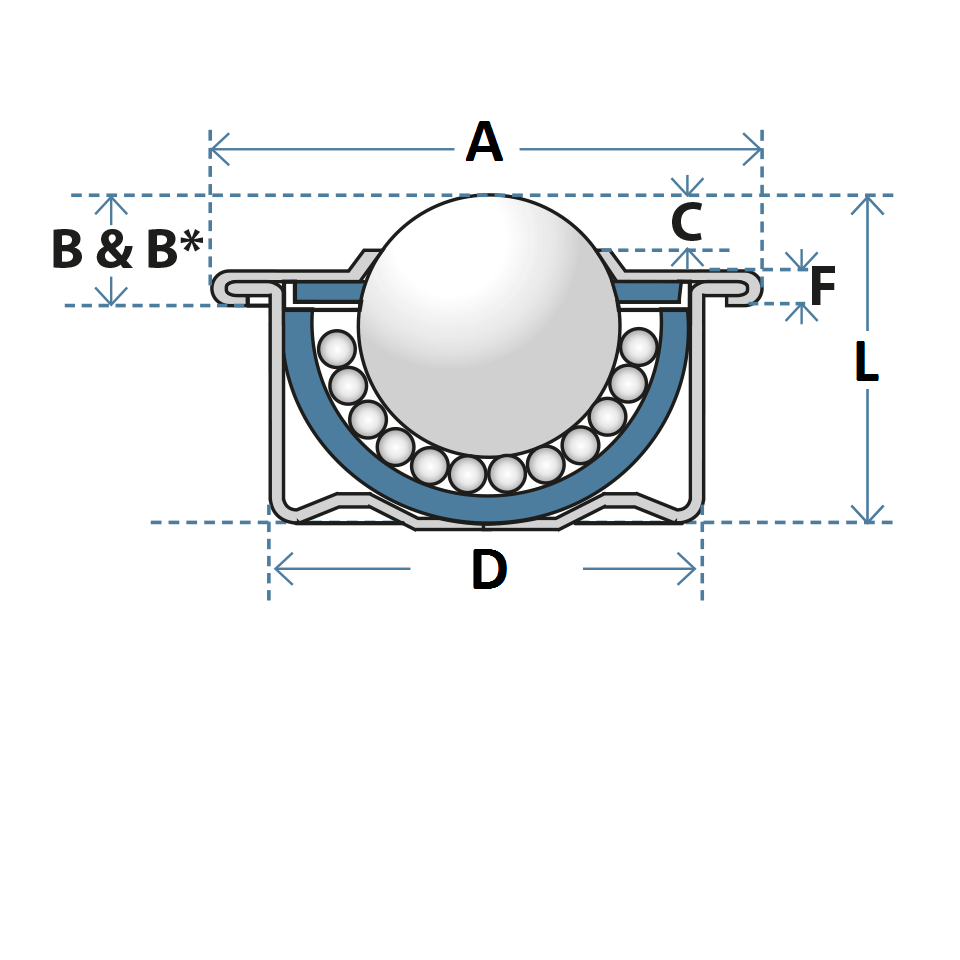

  • A: maximum diameter 31
  • B: working height of ball 10.1
  • C: ball exposure above outer ring 4.6
  • D: body diameter 24
  • F: flange thickness 2.8
  • L: overall height 21
