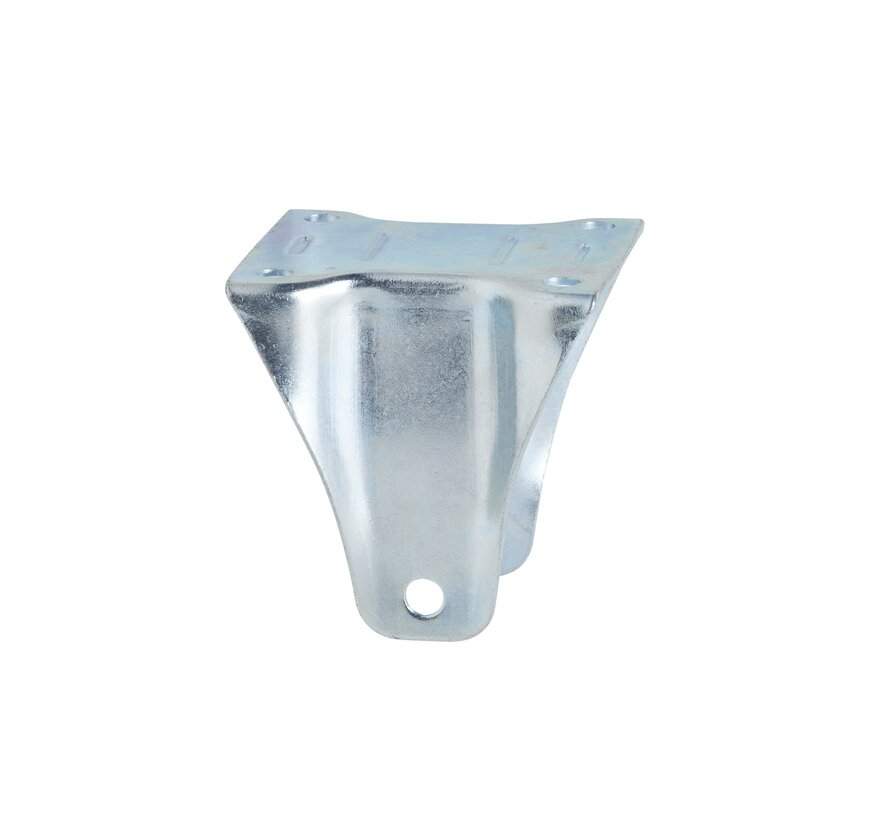

bucket fork Ø160mm plate fixing 300kg

Product description

fork

fork

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

bucket fork Ø160mm plate fixing 300kg

fork

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 246008162
  • EAN 8718116120407

Specifications

  • Wheel diameter (mm) 160
  • Load capacity (kg) 300
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork type Fixed fork
  • Fork Fixed fork made of pressed galvanised sheet steel
  • Thickness fork legs 3
  • Fork width (inner) 63
  • Fork height 110
  • Axle bore-Ø in fork legs 12
  • Series 46008
