diabolo rollers 70mm, tube rail wheels with double precision ball bearing in the axle. Shaft Ø:15mm - Industrialwheels.com

Back

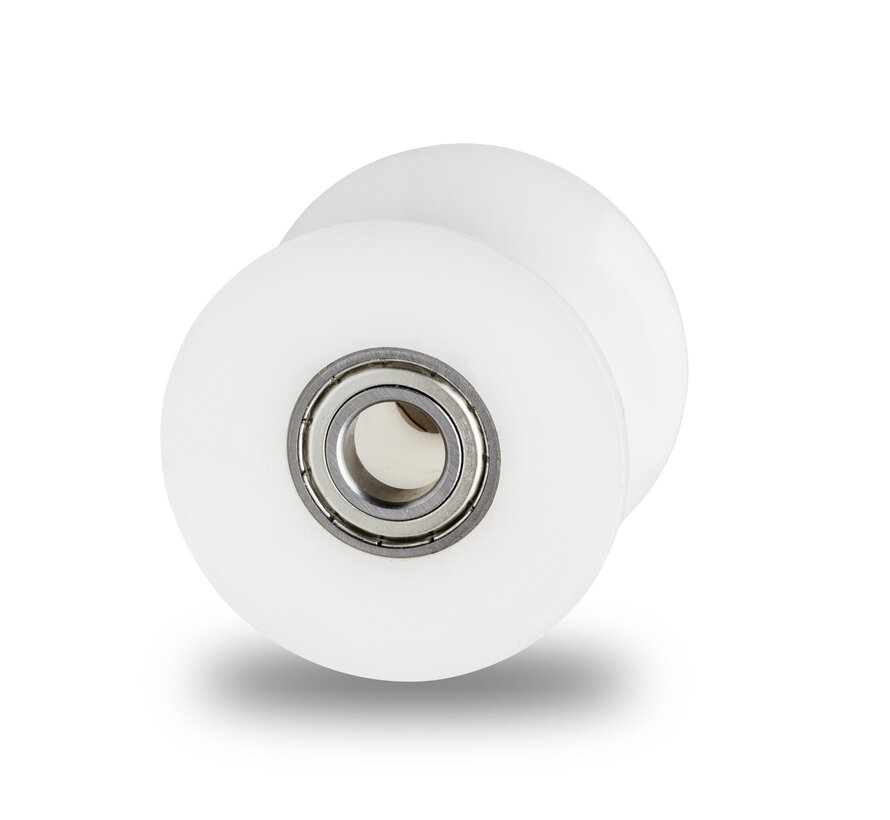

diabolo rollers, 70mm plastic, tubular gauge wheels, double precision ball bearing, axle hole Ø15mm

Product description

diabolo rollers 70mm, pipe rail wheels with double precision ball bearing in the axle. Axle hole Ø:15mm.

Designed and made to roll on a tube with a diameter of Ø 51mm.

diabolo rollers 70mm, tube rail wheels with double precision ball bearing in the axle. Shaft Ø:15mm.Designed and made to roll on Ø 51mm diameter tube.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

diabolo rollers, 70mm plastic, tubular gauge wheels, double precision ball bearing, axle hole Ø15mm

diabolo rollers 70mm, pipe rail wheels with double precision ball bearing in the axle. Axle hole Ø:15mm.

Designed and made to roll on a tube with a diameter of Ø 51mm.

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 100056709C
  • EAN 8718116075936

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 70
  • Wheel width (mm) 59
  • Load capacity (kg) 100
  • Type of wheel Flange / Track / Diabolo wheels
  • Hub length (mm) 58
  • Axle hole-Ø (mm) 15
  • Series 100.05
