fixed castor Ø 160 x 45mm elastic rubber tyre Load capacity 300kg - Industrial Wheels - Industrialwheels.com

Back

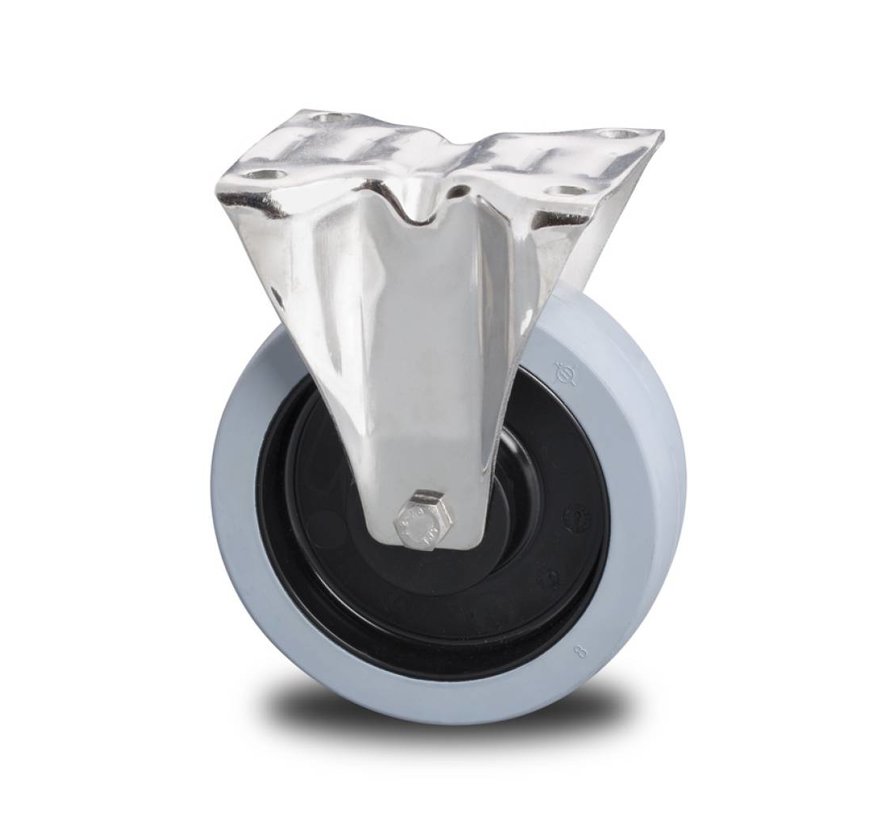

stainless steel fixed castor from stainless steel pressed, , elastic-tyre non-marking, precision ball bearing stainless steel, Wheel-Ø 160mm, 300KG

Product description

stainless steel fixed castor from stainless steel pressed, , elastic-tyre non-marking, precision ball bearing stainless steel, Wheel-Ø 160mm, 300KG

stainless steel, polyamide wheel centre elastic-tyre non-marking fixed castor

housing / bracket: stainless steel pressed, stainless steel,
wheel: elastic-tyre non-marking, with wheel centre from , precision ball bearing stainless steel,

Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping, non-marking.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds.
Suitable environment: Dry and not permanently humid. For mild chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

stainless steel fixed castor from stainless steel pressed, , elastic-tyre non-marking, precision ball bearing stainless steel, Wheel-Ø 160mm, 300KG

stainless steel fixed castor from stainless steel pressed, , elastic-tyre non-marking, precision ball bearing stainless steel, Wheel-Ø 160mm, 300KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 296568160G
  • EAN 8718116184898

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 160
  • Wheel width (mm) 45
  • Load capacity (kg) 300
  • Overall height (mm) 188
  • Size of top plate (mm) 135X110
  • Topplate hole centres (mm) 105X80
  • Mounting hole diameter (mm) 11
  • Bearing type 2-RS precision ball bearings
  • Hardness of tread 80° Shore A
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Temperature -20 / +60°C
  • Castor wheel type Fixed castor wheel
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Series 96.56
  • Tread elastic-tyre non-marking
