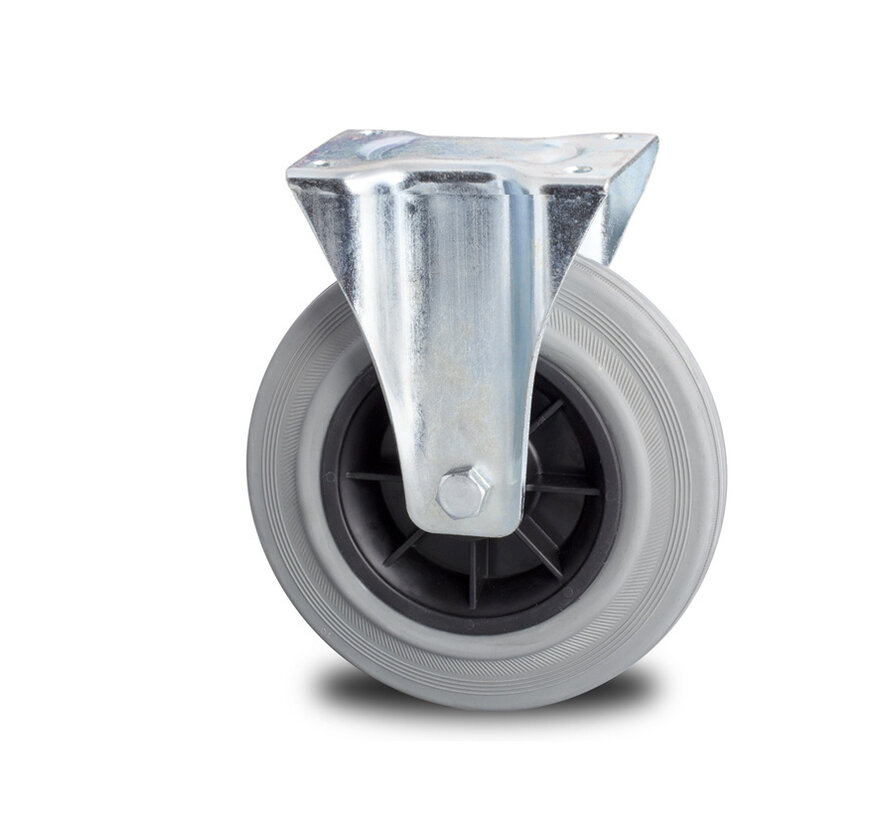

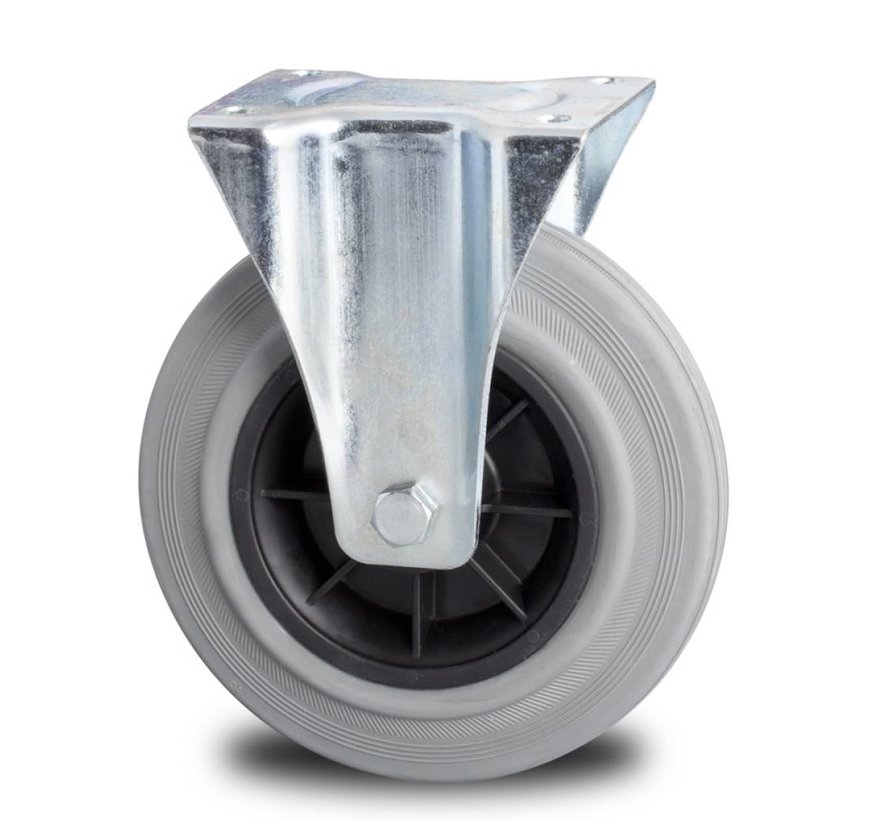

industrial fixed castor from pressed steel, plate fitting, rubber, gray, roller bearing, Wheel-Ø 200mm, 230KG

Product description

industrial fixed castor from pressed steel, plate fitting, rubber, gray, roller bearing, Wheel-Ø 200mm, 230KG

industrial, polyamide wheel centre rubber, gray fixed castor

housing / bracket: pressed steel, bright zinc plated, blue passivated, plate fitting
wheel: rubber, gray, with wheel centre from polyamide, roller bearing, threadguards

Benefits: The surfaceid rubber tires have a hardness of 80 ° Shore A and offer good handling, quiet rolling, they are shock and impact resistant, corrosion resistant and they have an average rolling resistance.

Applications: Versatile use for light transport in e.g. offices, warehouses, shops and institutions. Low noise, shock and vibration damping. Castor for lightweight applications. Less suitable for prolonged use under maximum static load.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tire may leave black traces on the floor.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial fixed castor from pressed steel, plate fitting, rubber, gray, roller bearing, Wheel-Ø 200mm, 230KG

industrial fixed castor from pressed steel, plate fitting, rubber, gray, roller bearing, Wheel-Ø 200mm, 230KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 246652200
  • EAN 8718116122036

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 200
  • Wheel width (mm) 50
  • Load capacity (kg) 230
  • Overall height (mm) 235
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Bearing type roller bearing
  • Hardness of tread 80° Shore A
  • Castor wheel type Fixed castor wheel
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Fixed fork made of pressed galvanised sheet steel
  • Series 46.65
  • Tread rubber, gray
