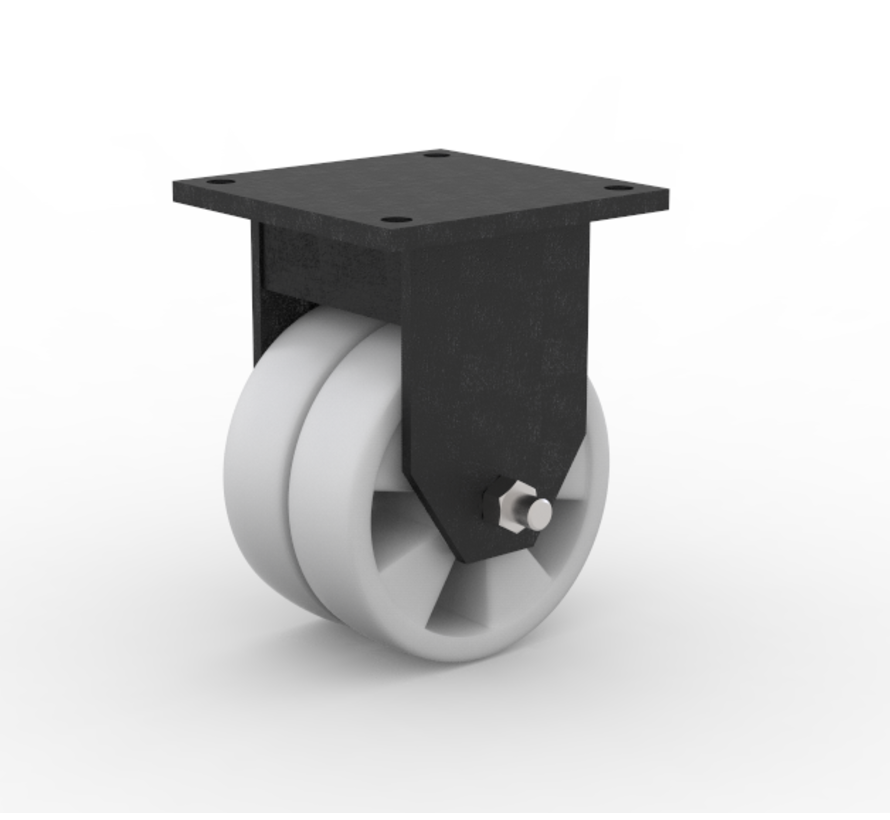

Fixed-wheel castor, Ø 200 mm, nylon (PA6), 1600KG

Product description

heavy duty fixed castor made of welded steel fork, plate mounting, hard nylon (PA6), precision ball bearing, Wheel Ø 200mm, 1600KG

Fork: Steel welded with black coating, plate fitting

Wheel: Hard nylon (PA6) with windmill profile, precision ball bearing, double wheel mounting


Advantages: For very heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant.

Applications: Heavy material handling, heavy containers, automotive factories, petrochemical plants, heavy transport, ports, armed forces, aviation, bridge cranes, chemical plants.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Fixed-wheel castor, Ø 200 mm, nylon (PA6), 1600KG

heavy duty fixed castor made of welded steel fork, plate mounting, hard nylon (PA6), precision ball bearing, Wheel Ø 200mm, 1600KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 227486202
  • EAN 8718116215639

Specifications

  • Non marking tread Yes

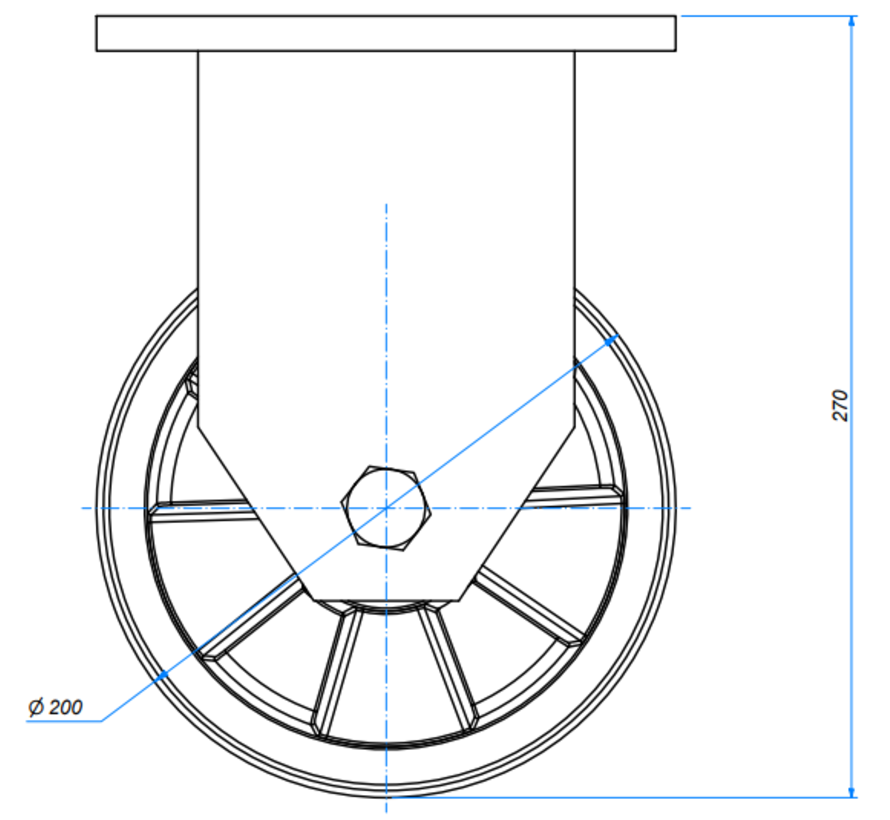

  • Wheel diameter (mm) 200
  • Load capacity (kg) 1600
  • Overall height (mm) 270

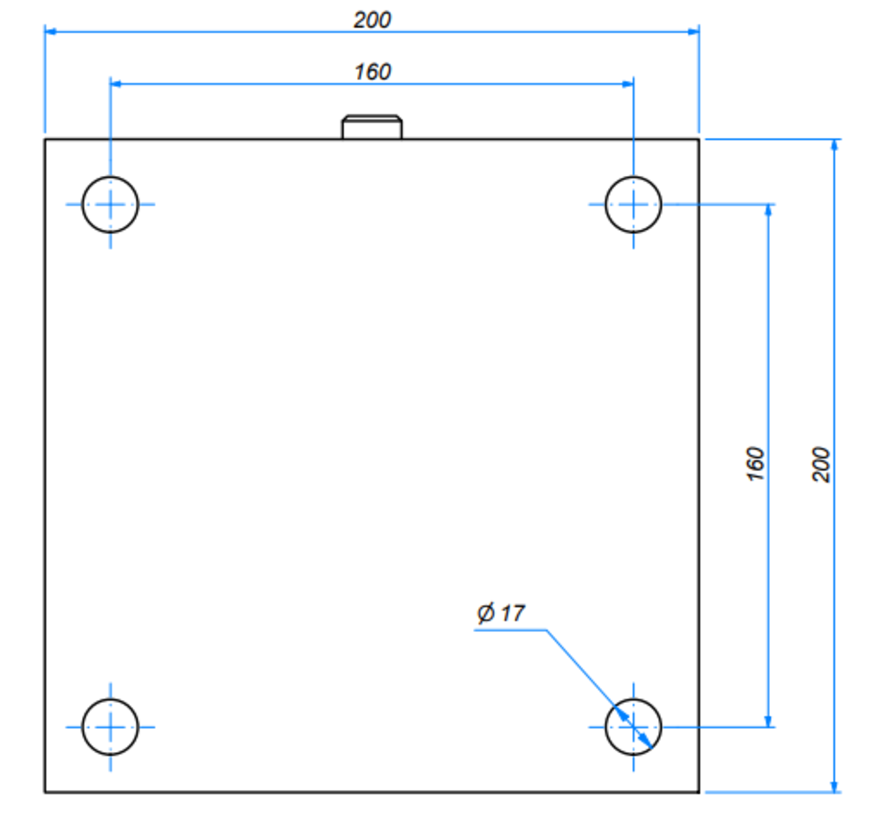

  • Size of top plate (mm) 200x200
  • Topplate hole centres (mm) 160x160
  • Mounting hole diameter (mm) 17
  • Castor wheel type Fixed castor wheel
  • Fork material Welded steel construction
  • Series 27.48
