swivel castor Ø 50 x 23mm grey rubber Load capacity 50kg - Industrial Wheels - Industrialwheels.com

Back

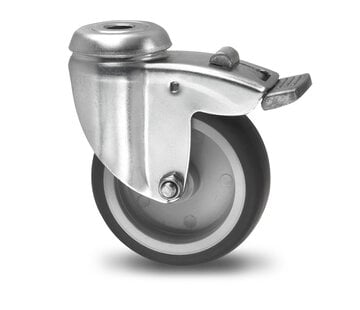

Apparatus swivel caster from pressed steel, bolt hole, thermoplastic rubber grey non-marking, plain bearing, Wheel-Ø 50mm, 50KG

Product description

Apparatus swivel caster from pressed steel, bolt hole, thermoplastic rubber grey non-marking, plain bearing, Wheel-Ø 50mm, 50KG

Institutional thermoplastic (TPR) non-marking Swivel caster

Housing: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
Wheel: thermoplastic rubber grey non-marking, with Wheel centre from Polypropylene, plain bearing, double castors

Features: Versatile use for light transport in eg offices, warehouses, shops and institutions. Bowel sounds, shock and vibration dampening. Caster for lightweight applications. Less suitable for prolonged use under static maximum load

Applications: Bedside cabinets, Computer tables, Display stands, Dustbins, File carts, Garment stands, Greeting card dispensers, Housekeeping carts, Infusion stands, Newspaper dispensers, Sales stands, Small furniture, Sport equipment

Suitable surface: Smooth surface or with small irregularities. Non-marking tire for use on ceramic tiles, linoleum, etc.
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Apparatus swivel caster from pressed steel, bolt hole, thermoplastic rubber grey non-marking, plain bearing, Wheel-Ø 50mm, 50KG

Apparatus swivel caster from pressed steel, bolt hole, thermoplastic rubber grey non-marking, plain bearing, Wheel-Ø 50mm, 50KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 320880500
  • EAN 8718116130925

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 50
  • Wheel width (mm) 23
  • Load capacity (kg) 50
  • Overall height (mm) 69
  • Swivel Radius 25
  • Bearing type plain bearing
  • Hardness of tread 90° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Temperature 0 / +40°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Bolt hole diameter 11
  • Series 32.88
  • Tread gray thermoplastic rubber, non-marking
