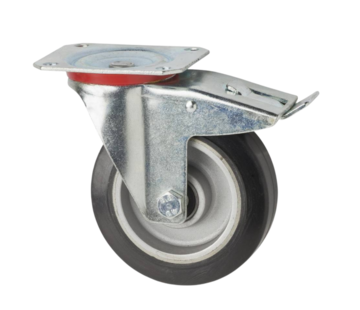

Industrial Swivel caster from pressed steel, plate fitting, elastic-tyre, precision ball bearing, Wheel-Ø 125mm, 200KG

Product description
Quality & Service since 1946

Industrial elastic rubber Swivel caster

Housing: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: elastic-tyre, with Wheel centre from Aluminium, precision ball bearing,

Features: Versatile in use with excellent rolling characteristics. Low noise and vibration dampening

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds.
Suitable environment: Permanently dry and not humid. By weak chemicals.

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Swivel caster from pressed steel, plate fitting, elastic-tyre, precision ball bearing, Wheel-Ø 125mm, 200KG

within 3 working days

Quantity

We want to make your work-life easier Tooltip Just tell us what you need
Fast delivery
3D CAD Models
Engineering service
Estimated time: within 3 working days

Request OE part

Download PDF

Chemical resistance

Product information

SKU 146116121
EAN 8718116101734

Specifications

Non marking tread No
Wheel diameter (mm) 125
Wheel width (mm) 38
Load capacity (kg) 200
Overall height (mm) 155
Size of top plate (mm) 105x 80
Topplate hole centres (mm) 80x60
Mounting hole diameter (mm) 9
Swivel offset (mm) 40
Swivel Radius 102
Bearing type precision ball bearing
Hardness of tread 75° Shore A
Tread description Elastic black vulcanised rubber tyre, with the shock-absorbing properties and low rolling resistance.
Temperature -20 / +60°C
Castor wheel type Swivel castor
Fitting Plate mounting
Fork material Galvanised
Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
Series 46.11
Tread elastic-tyre
