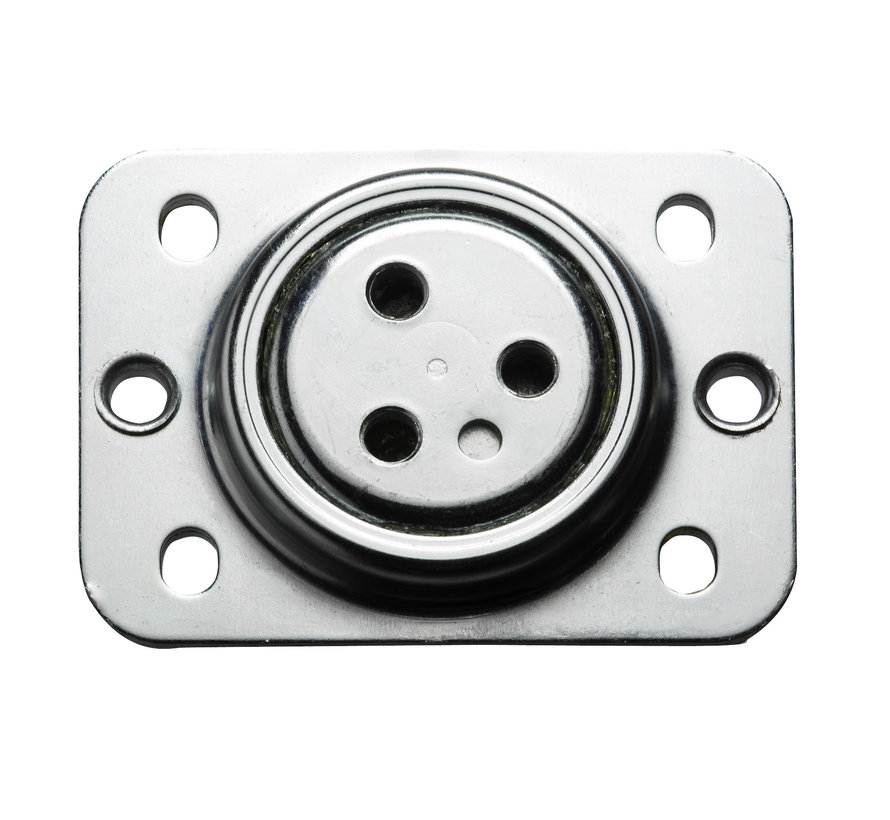

Heavy duty turntable Max. load 600 kg - two turntables with thrust ball bearings

Product description

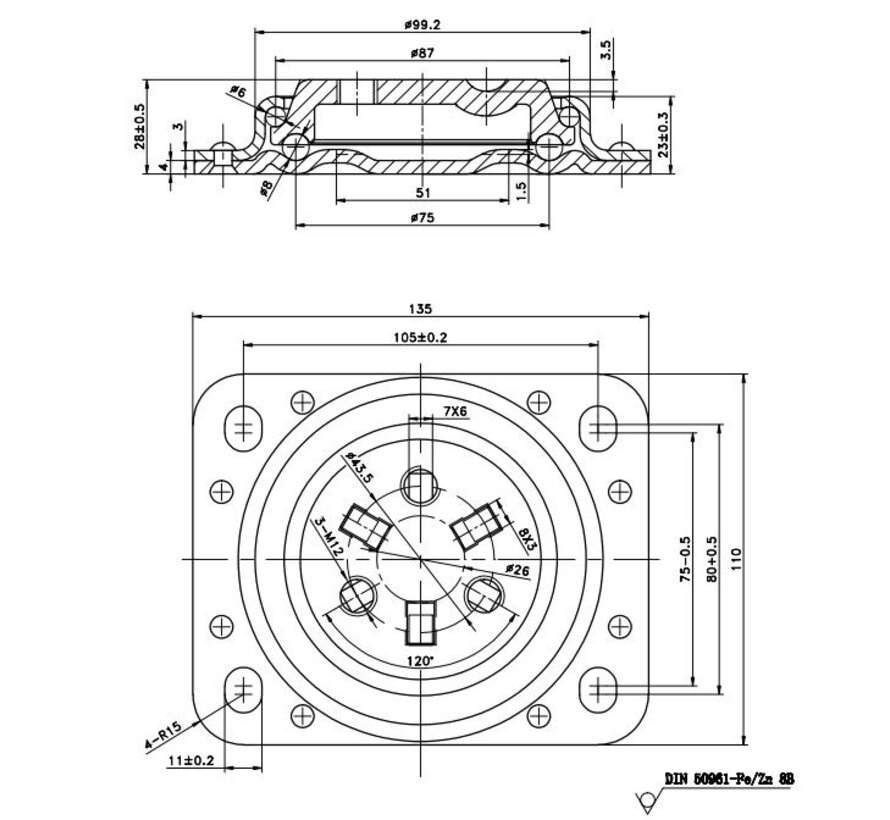

Slewing ring 360° steel thrust ball bearing. Max. load 600 kg. Dimension 138x109 mm, plate hole diameter 11 mm, distance between plate holes 105x75/80 mm, load 600 kg

Slewing ring 360° steel thrust ball bearing.

Height 26mm
Dimension 138x109mm
Plate hole diameter 11 mm
Distance between the plate holes 105x75/80 mm
load 600 kg

Slewing bearing Swivel fitting Slewing plate with heavy-duty industrial bearings,







Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Heavy duty turntable Max. load 600 kg - two turntables with thrust ball bearings

Slewing ring 360° steel thrust ball bearing. Max. load 600 kg. Dimension 138x109 mm, plate hole diameter 11 mm, distance between plate holes 105x75/80 mm, load 600 kg

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 502000138
  • EAN 8718116149231

Specifications

  • Non marking tread No
  • Load capacity (kg) 600
  • Size of top plate (mm) 135 x 110
  • Topplate hole centres (mm) 105 x 75-80
  • Fitting Plate mounting
  • Housing material Galvanised steel
  • Thickness top plate 4
  • Series 502
  • Diameter fixing hole 11
