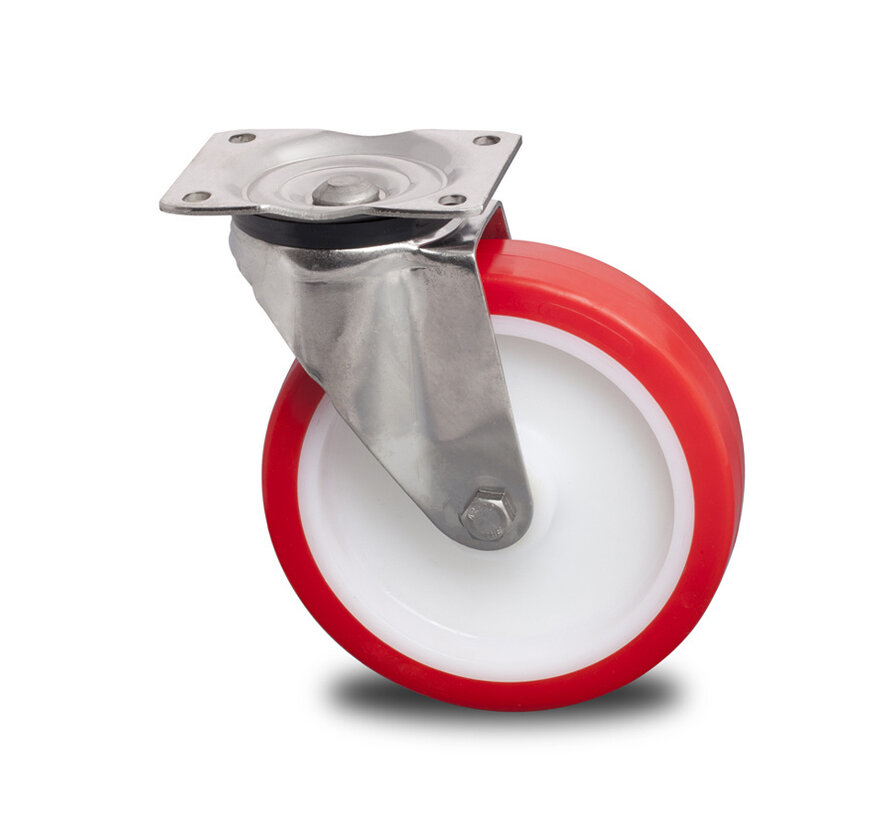

Stainless steel swivel castor, Ø150, injection-moulded polyurethane, 400kg.

Product description

Stainless steel transport castor made of stainless steel (pressed), plate mounting, sprayed polyurethane, stainless steel roller bearing, Wheel Ø 150mm, 400KG

Fork: pressed stainless steel, double ball bearing swivel head, plate fitting
Wheel:
injection-moulded polyurethane, with polyamide wheel centre, stainless steel roller bearing

Advantages: for medium-heavy transport on flat floors and for long-term static operation under load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Food industry, pharmaceutical industry, laundry containers, serving trolleys, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotels, restaurants, catering, café, fish processing plants, fish trade, supermarkets.

Suitable substrate:
Suitable environment: For alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless steel swivel castor, Ø150, injection-moulded polyurethane, 400kg.

Stainless steel transport castor made of stainless steel (pressed), plate mounting, sprayed polyurethane, stainless steel roller bearing, Wheel Ø 150mm, 400KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 194633152
  • EAN 8718116202660

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 150
  • Load capacity (kg) 400
  • Overall height (mm) 187
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 55
  • Swivel Radius 130
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Series 94.63
