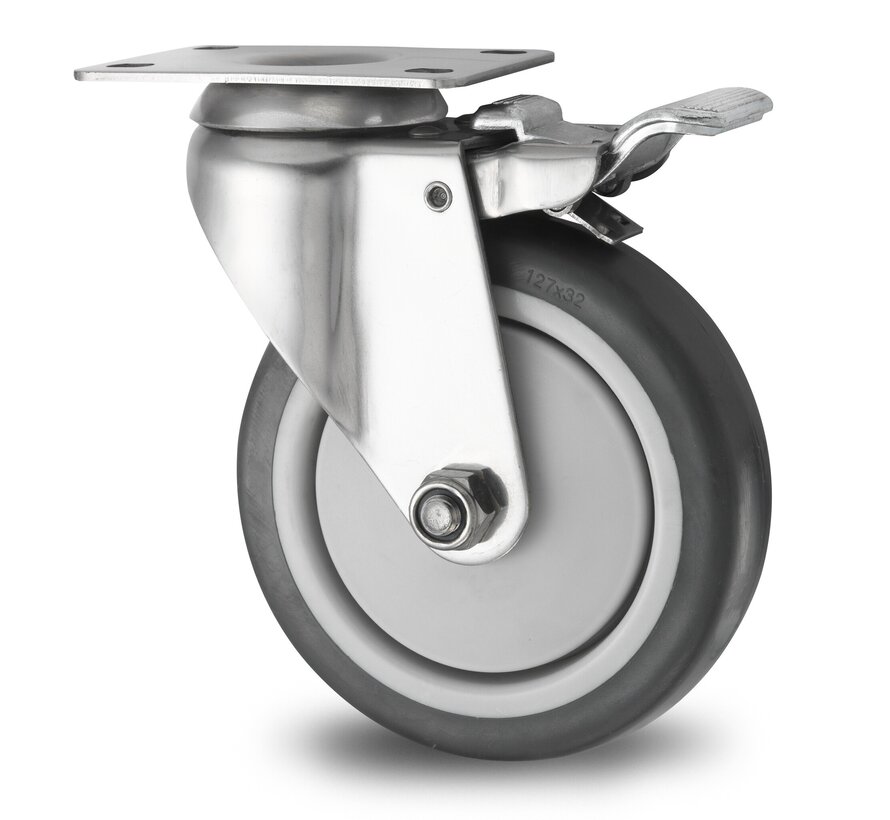

Stainless steel swivel castor with brake, Ø 100mm, grey non-marking thermoplastic rubber tyre, 80KG

Product description

Stainless steel appliances swivel castor with brake made of stainless steel (pressed), plate fitting, grey non-marking thermoplastic rubber tyre, precision ball bearing, Wheel-Ø 100mm, 80KG

wheel: grey non-marking thermoplastic rubber tyre, with polypropylene wheel core, precision ball bearing, thread protectors

Advantages: Versatile use for light transport in e.g. damp or hygienic environments. Low-noise, impact-resistant and vibration-damping.

Applications: Food industry, professional kitchens, healthcare sector, display stands, shop fitting, small furniture, sales counters.

Suitable substrate : Flat or slightly uneven. Non-striping tape for use on ceramic tiles, linoleum, etc.
Suitable environment : Dry and not permanently damp. With light acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless steel swivel castor with brake, Ø 100mm, grey non-marking thermoplastic rubber tyre, 80KG

Stainless steel appliances swivel castor with brake made of stainless steel (pressed), plate fitting, grey non-marking thermoplastic rubber tyre, precision ball bearing, Wheel-Ø 100mm, 80KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 396096103
  • EAN 8718116202493

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Wheel width (mm) 30
  • Load capacity (kg) 80
  • Overall height (mm) 135
  • Size of top plate (mm) 95x67
  • Topplate hole centres (mm) 74x44
  • Mounting hole diameter (mm) 8,5
  • Swivel offset (mm) 42
  • Swivel Radius 92
  • Bearing type precision ball bearing
  • Hardness of tread 95° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 39.36
  • Tread gray thermoplastic rubber, non-marking
