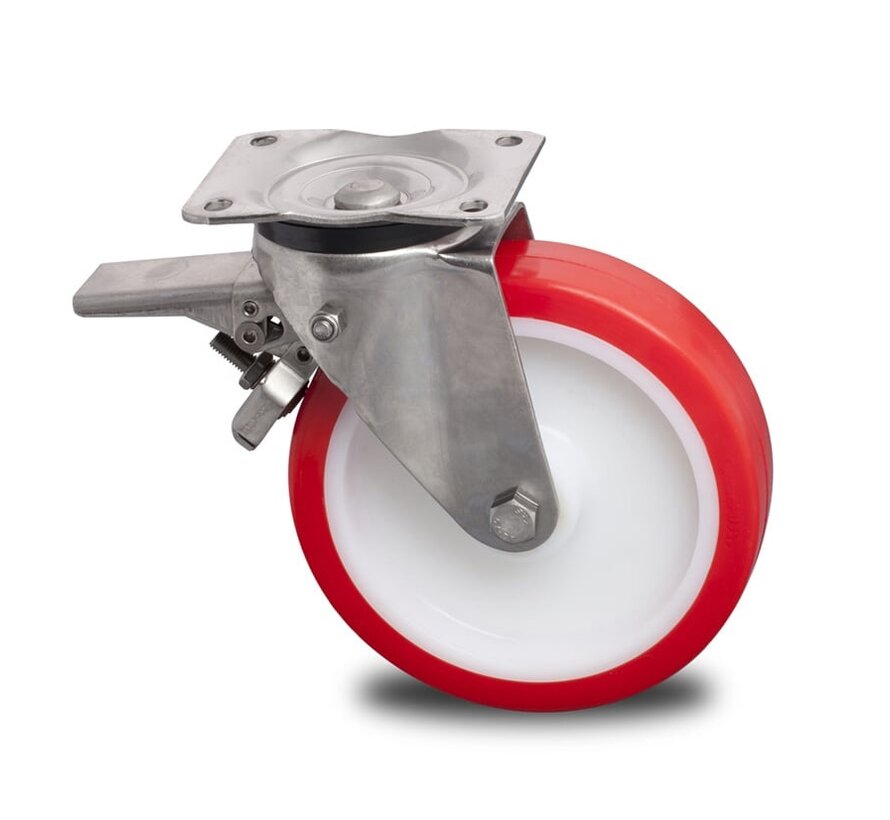

Stainless steel swivel castor with brake, Ø200, painted polyurethane, 650kg.

Product description

Stainless steel transport castor with brake made of stainless steel (pressed), plate mounting, sprayed polyurethane, stainless steel precision ball bearing, Wheel Ø 200mm, 650kg

Fork: pressed stainless steel, double ball swivel head, plate attachment
Wheel:
injection-moulded polyurethane, with polyamide wheel core, stainless steel precision ball bearing,

Advantages: For medium-heavy transport on flat floors and for long-term static use under load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Food industry, pharmaceutical industry, laundry containers, serving trolleys, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotels, restaurants, catering, café, fish processing plants, fish trade, supermarkets.

Suitable substrate:
Suitable environment: For alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless steel swivel castor with brake, Ø200, painted polyurethane, 650kg.

Stainless steel transport castor with brake made of stainless steel (pressed), plate mounting, sprayed polyurethane, stainless steel precision ball bearing, Wheel Ø 200mm, 650kg

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 194639205
  • EAN 8718116215325

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200
  • Load capacity (kg) 650
  • Overall height (mm) 237
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 58
  • Swivel Radius 158
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 94.63
