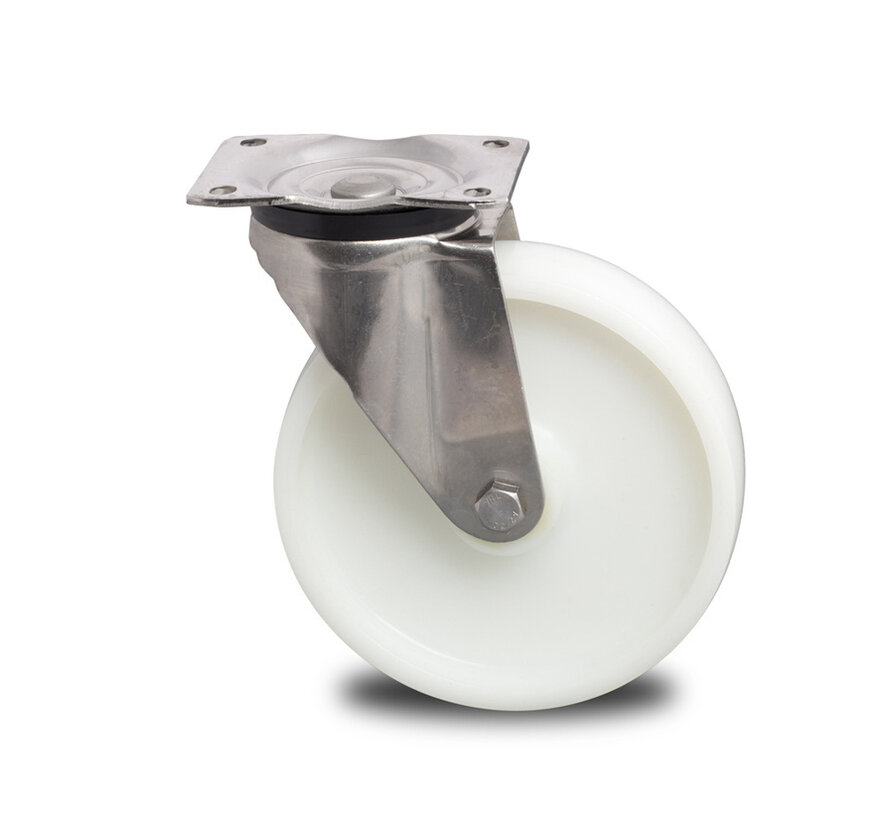

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Polyamide wheel, plain bearing, Wheel-Ø 125mm, 450KG

Product description

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Polyamide wheel, plain bearing, Wheel-Ø 125mm, 450KG

Stainless Steel Polyamide (PA6) Swivel caster

Housing: Stainless Steel Pressed, double ball race in swivel head, stainless steel AISI 304, plate fitting
Wheel: Polyamide wheel, plain bearing,

Features: Voor zwaar transport op gladde vloeren. Zeer lage rolweerstand. Glad oppervlak, hygiënisch.

Applications: Food processing industry, Laundry carts, pharmaceutical industry, hospitality, food transportation means, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotel, restaurant, catering, cafe, fish processors, supermarkets,

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Dry and wet environment. For chemicals and saturated steam

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Polyamide wheel, plain bearing, Wheel-Ø 125mm, 450KG

Stainless Steel Swivel caster from Stainless Steel Pressed, plate fitting, Polyamide wheel, plain bearing, Wheel-Ø 125mm, 450KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 194480122
  • EAN 8718116112105

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 125
  • Wheel width (mm) 40
  • Load capacity (kg) 450
  • Overall height (mm) 155
  • Size of top plate (mm) 135x105
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 53
  • Swivel Radius 115
  • Bearing type plain bearing
  • Tread description Polyamide (PA6) wheels
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Fork 194
  • Series 94.48
  • Tread fully nylon (PA6) wheel
