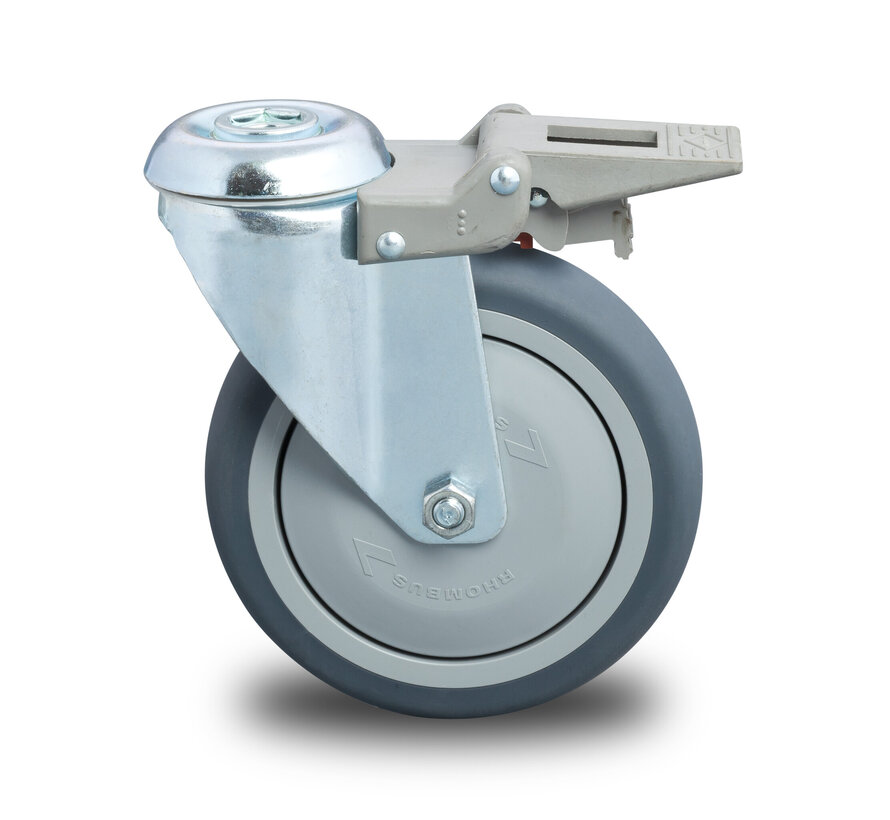

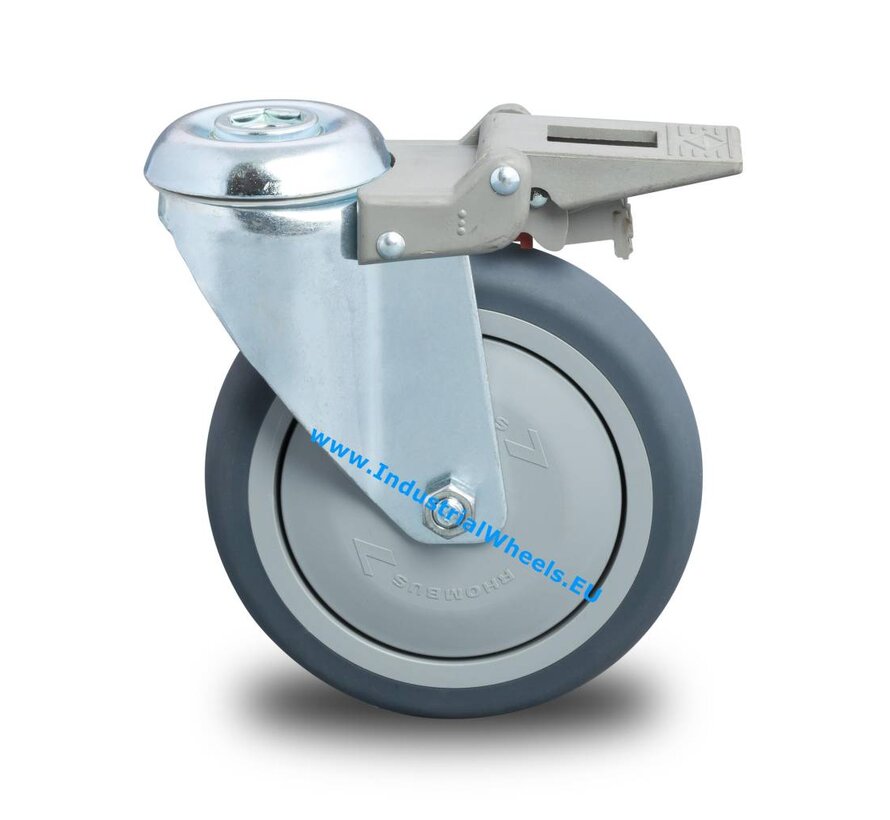

Institutional Swivel caster with brake from pressed steel, bolt hole, thermoplastic rubber grey non-marking, precision ball bearing, Wheel-Ø 100mm, 100KG

Product description

Institutional Swivel caster with brake from pressed steel, bolt hole, thermoplastic rubber grey non-marking, precision ball bearing, Wheel-Ø 100mm, 100KG

Institutional thermoplastic (TPR) non-marking Swivel caster with brake

Housing: pressed steel, Total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
Wheel: thermoplastic rubber grey non-marking, with Wheel centre from Polypropylene, precision ball bearing, threadguards

Features: Top quality, with excellent role performance. Plastics tread guards to prevent soiling of the hub.

Applications: Care beds, Cleaning machines, Computer equipment, Display stands, Dustbins, File carts, Food transport equipment, Industrial kitchens, Laundry carts, Medical-technical equipment, Newspaper dispensers, Restaurant areas, Sales stands, Shop fittings.

Suitable surface: Smooth surface or with small irregularities. Non-marking tire for use on ceramic tiles, linoleum, etc.
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Institutional Swivel caster with brake from pressed steel, bolt hole, thermoplastic rubber grey non-marking, precision ball bearing, Wheel-Ø 100mm, 100KG

Institutional Swivel caster with brake from pressed steel, bolt hole, thermoplastic rubber grey non-marking, precision ball bearing, Wheel-Ø 100mm, 100KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 360526103
  • EAN 8718116211358

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Wheel width (mm) 30
  • Load capacity (kg) 100
  • Overall height (mm) 131
  • Swivel offset (mm) 42
  • Swivel Radius 92
  • Bearing type precision ball bearing
  • Hardness of tread 90° Shore A
  • Tread description Grey thermo (TPR) rubber
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Bolt hole diameter 12
  • Series 36.25
  • Tread gray thermoplastic rubber, non-marking
