Stainless Steel Swivel caster with brake from Stainless Steel Pressed, plate fitting, Injected polyurethane, roller bearing Stainless Steel, Wheel-Ø 200mm, 500KG

Product description

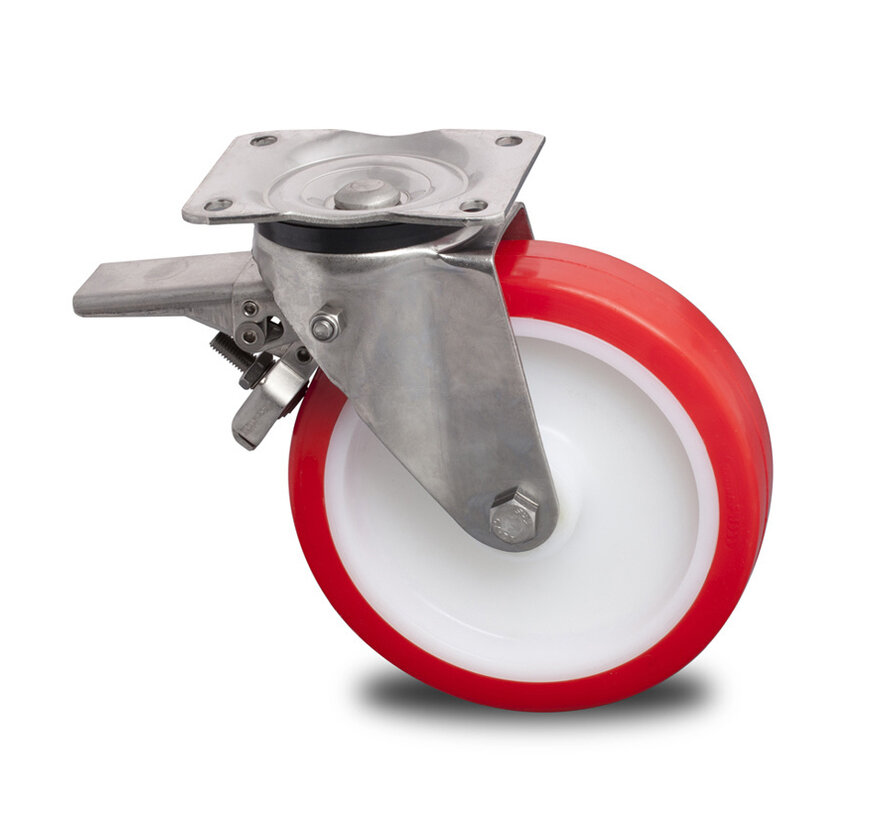

Stainless Steel Swivel caster with brake from Stainless Steel Pressed, plate fitting, Injected polyurethane, roller bearing Stainless Steel, Wheel-Ø 200mm, 500KG

Stainless Steel Polyurethane (PU) Swivel caster with brake

Housing: Stainless Steel Pressed, Total lock, double ball race in swivel head, stainless steel AISI 304, plate fitting
Wheel: Injected polyurethane, with Wheel centre from Polyamide, roller bearing Stainless Steel,

Features: For medium and heavy transport on slippery floors for prolonged use under static load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Food processing industry, Laundry carts, pharmaceutical industry, hospitality, food transportation means, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotel, restaurant, catering, cafe, fish processors, supermarkets,

Suitable surface:
Suitable environment: For alcohol, glycol and many acids, alkalis and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Stainless Steel Swivel caster with brake from Stainless Steel Pressed, plate fitting, Injected polyurethane, roller bearing Stainless Steel, Wheel-Ø 200mm, 500KG

Stainless Steel Swivel caster with brake from Stainless Steel Pressed, plate fitting, Injected polyurethane, roller bearing Stainless Steel, Wheel-Ø 200mm, 500KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 194633205
  • EAN 8718116112358

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200
  • Wheel width (mm) 50
  • Load capacity (kg) 650
  • Overall height (mm) 237
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 58
  • Swivel Radius 158
  • Bearing type roller bearing stainless steel
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Fork 194
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 94.63
  • Tread injected polyurethane
