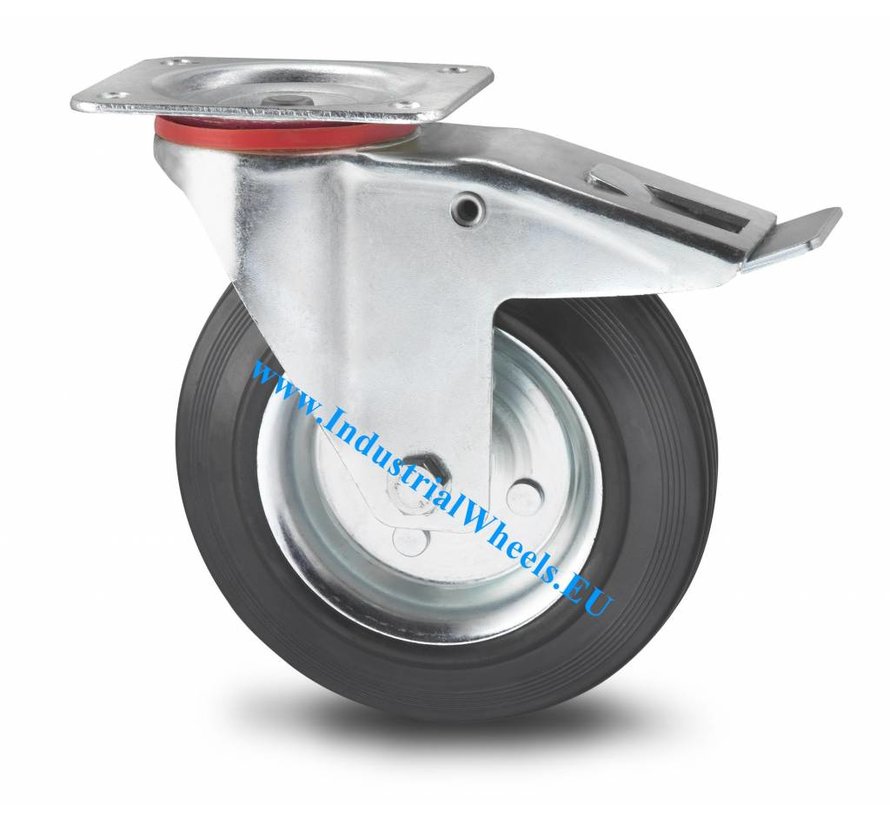

Industrial Swivel caster with brake from pressed steel, plate fitting, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

Product description

Industrial Swivel caster with brake from pressed steel, plate fitting, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

Industrial Solid rubber Swivel caster with brake

Housing: pressed steel, Total lock, double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
Wheel: rubber, black, with Wheel centre from pressed steel, roller bearing, threadguards

Features: The solid rubber tires have a hardness o 90 ° Shore A and offer good handling, quiet ride, shock and impact resistant, corrosion resistant and have an average rolling resistance.

Applications: Versatile use for light transport in eg offices, warehouses, shops and institutions. Bowel sounds, shock and vibration dampening. Caster for lightweight applications. Less suitable for prolonged use under static maximum load

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tread could leave black traces on the floor
Suitable environment: Dry and not Permanently humid. For mild acids and alkalis.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Swivel caster with brake from pressed steel, plate fitting, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

Industrial Swivel caster with brake from pressed steel, plate fitting, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 146612803
  • EAN 8718116104759

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 80
  • Wheel width (mm) 27
  • Load capacity (kg) 65
  • Overall height (mm) 104
  • Size of top plate (mm) 105x 80
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 9
  • Swivel offset (mm) 37
  • Swivel Radius 77
  • Bearing type roller bearing
  • Hardness of tread 80° Shore A
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Series 46.61
  • Tread black rubber tyre
