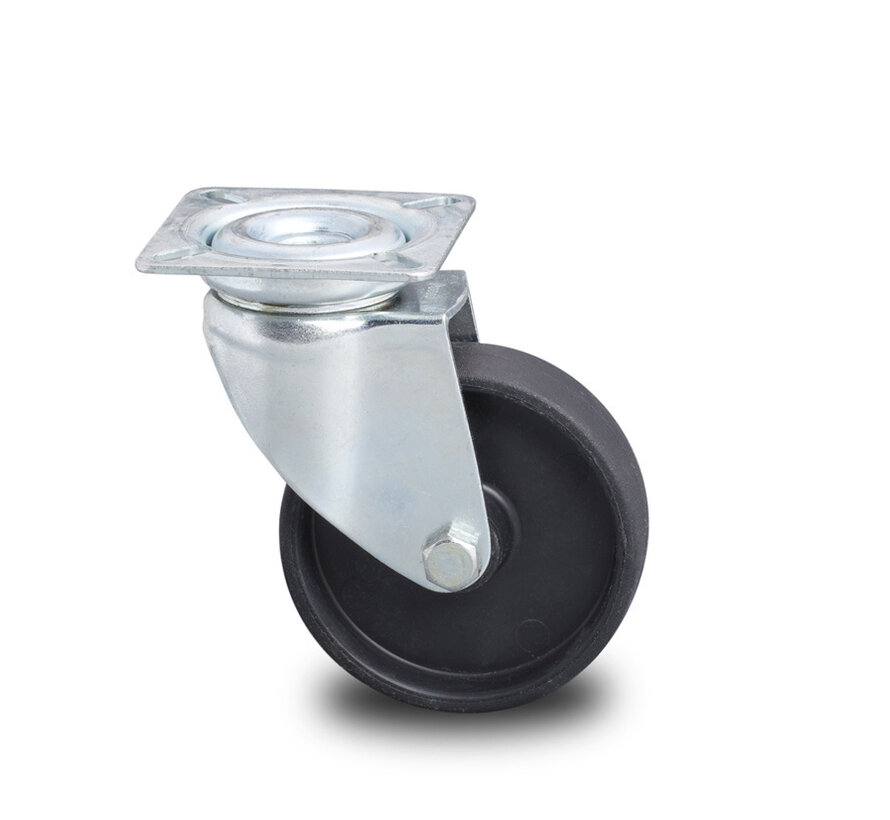

swivel castor, Ø 100 mm, all Polypropylene wheel, 80KG

Product description

Pressed-plate steel swivel castor, plate fitting, fully Polypropylene wheel, plain bearing, Wheel Ø 100 mm, 80KG

Wheel: all Polypropylene wheel, with wheel core from , sliding bearing,

Advantages: Versatile wheel for applications on flat surfaces. Excellent for static applications under load.

Applications: Versatile wheel for flat surface applications. Excellent for static applications under load.

Suitable surface : Flat surface, without obstacles.
Suitable environment : Dry and not permanently damp. For light acids and bases.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 100 mm, all Polypropylene wheel, 80KG

Pressed-plate steel swivel castor, plate fitting, fully Polypropylene wheel, plain bearing, Wheel Ø 100 mm, 80KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 326820100
  • EAN 8718116132516

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Wheel width (mm) 24
  • Load capacity (kg) 80
  • Overall height (mm) 125
  • Size of top plate (mm) 60x60
  • Topplate hole centres (mm) 42x42
  • Mounting hole diameter (mm) 6
  • Swivel offset (mm) 34
  • Swivel Radius 84
  • Bearing type plain bearing
  • Tread description Polypropylene wheels
  • Temperature 0 / +40°C
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Series 32.82
  • Tread polypropylene wheel
