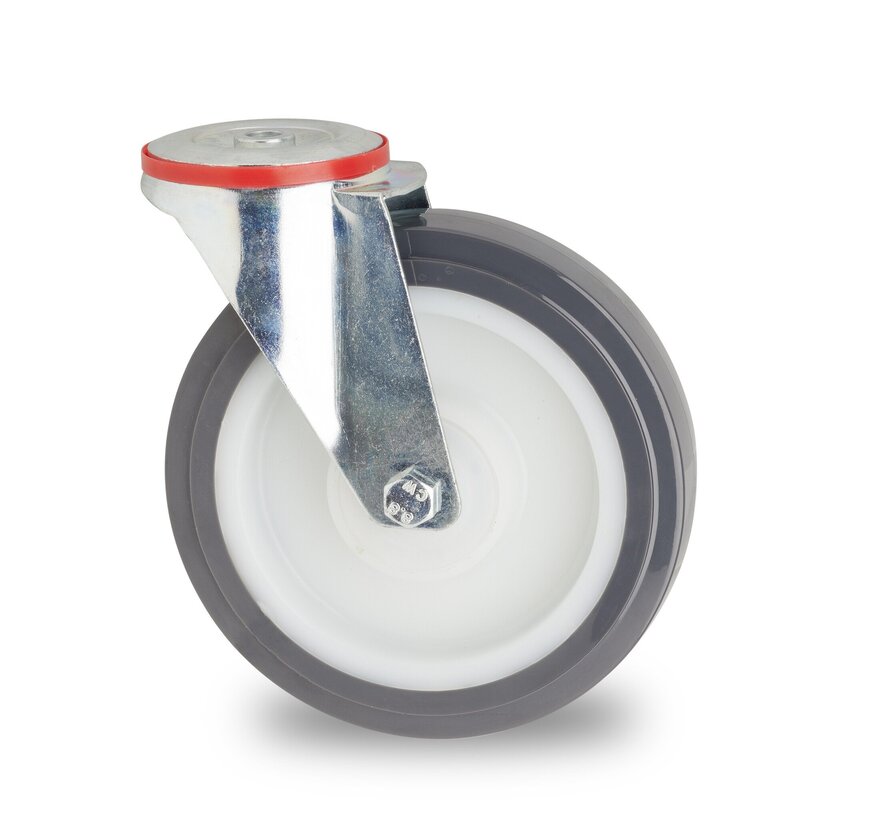

swivel castor, Ø 100 mm, injection-moulded polyurethane, 200KG

Product description

Transport swivel castor made of pressed sheet steel, bolt hole attachment, injection molded polyurethane, roller bearing, Wheel-&-Oslash; 100mm, 200KG

Wheel: injection-moulded polyurethane, with polyamide wheel core, roller bearing

Advantages: For medium-heavy transport on flat floors and for long-term static use under load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Hard and flat such as tiles, cement and coatings.
Suitable environment : Indoors and outdoors. With alcohol, glycol, mineral oils and greases.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 100 mm, injection-moulded polyurethane, 200KG

Transport swivel castor made of pressed sheet steel, bolt hole attachment, injection molded polyurethane, roller bearing, Wheel-&-Oslash; 100mm, 200KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140952100G
  • EAN 8718116190745

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Load capacity (kg) 200
  • Overall height (mm) 128
  • Swivel offset (mm) 37
  • Swivel Radius 87
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Bolt hole diameter 13
  • Series 40.95
