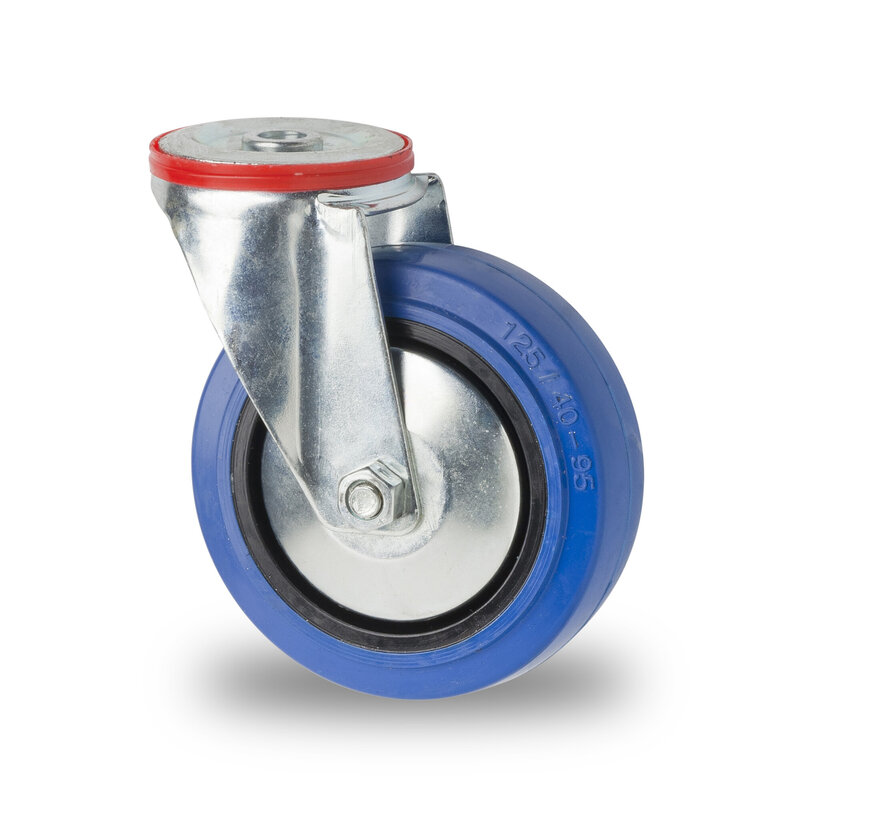

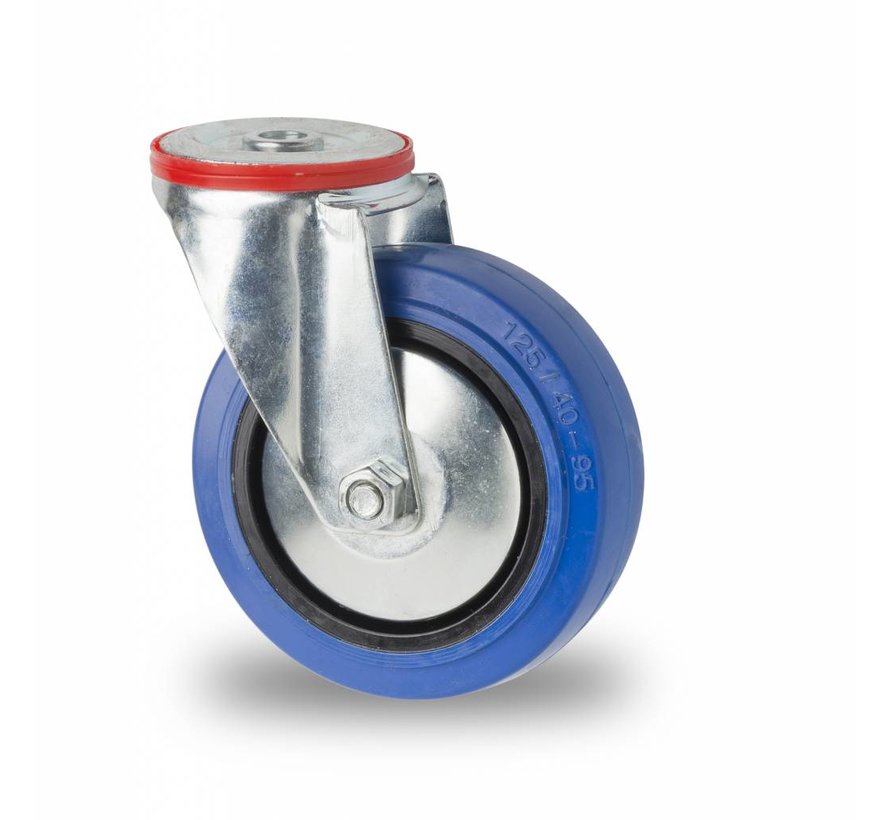

industrial swivel castor from pressed steel, bolt hole, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

Product description

industrial swivel castor from pressed steel, bolt hole, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

industrial elastic rubber swivel castor

housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: elastic-tyre, with wheel centre from polyamide, roller bearing, threadguards

Benefits: Versatile use with excellent rolling characteristics. Low noise and vibration damping, non-marking.

Applications: flight case, roll cage castor, trolleys for industrial handling, flightcase , theater & entertainment, blue elastic rubber

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds.
Suitable environment: Dry and not permanently humid. For mild chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor from pressed steel, bolt hole, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

industrial swivel castor from pressed steel, bolt hole, elastic-tyre, roller bearing, Wheel-Ø 100mm, 150KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140572106K
  • EAN 8718116186328

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Wheel width (mm) 35
  • Load capacity (kg) 150
  • Overall height (mm) 128
  • Swivel offset (mm) 37
  • Swivel Radius 87
  • Bearing type roller bearing
  • Hardness of tread 70° Shore A
  • Tread description Blue (flight case) wheels with elastic rubber tyre, these wheels have low rolling and swivel resistance, absorb shocks and leave no marks.
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Bolt hole diameter 13
  • Series 40.57
  • Tread elastic-tyre
