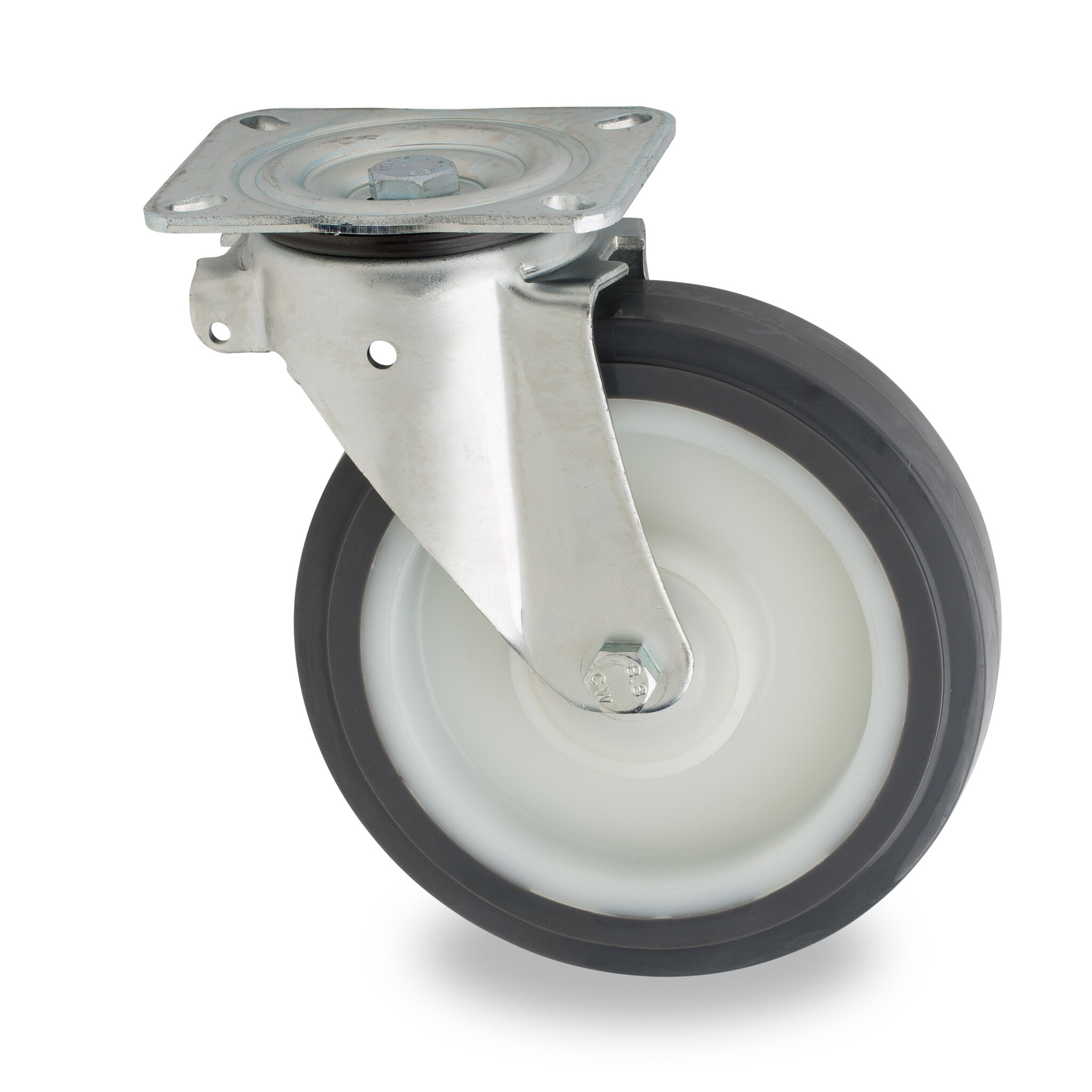

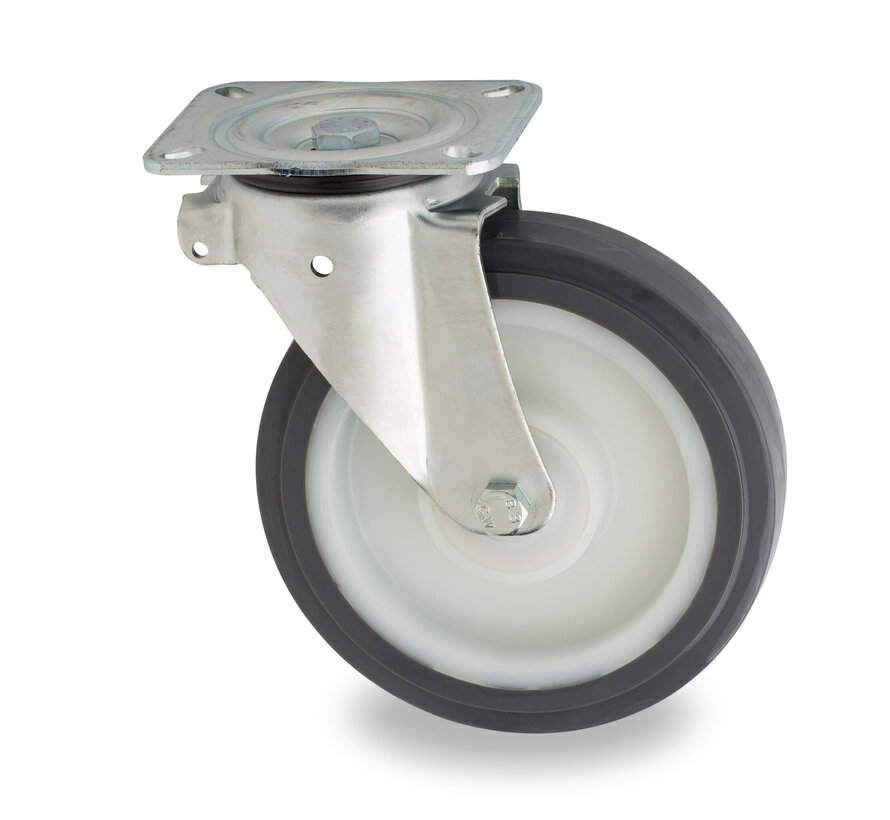

swivel castor, Ø 200 mm, injection-moulded polyurethane tyre, 800KG

Product description

transport reinforced fork / housing swivel wheel made of pressed heavy sheet steel, plate mounting, sprayed polyurethane tire, precision ball bearing, Wheel Ø 200mm, 800KG

Wheel: injection-moulded polyurethane tyre, with wheel core made of PA6, precision ball bearing,

Advantages: For heavy transport on flat floors and for long-term static use under load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable substrate: Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry and not permanently damp. For weak chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor, Ø 200 mm, injection-moulded polyurethane tyre, 800KG

transport reinforced fork / housing swivel wheel made of pressed heavy sheet steel, plate mounting, sprayed polyurethane tire, precision ball bearing, Wheel Ø 200mm, 800KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 174956200
  • EAN 8718116202899

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200
  • Load capacity (kg) 800
  • Overall height (mm) 240
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 60
  • Swivel Radius 160
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Plate mounting
  • Fork material Galvanised
  • Series 74.95
