swivel castor Ø 80 x 27mm black rubber tyre Load capacity 65kg - Industrial Wheels - Industrialwheels.com

Back

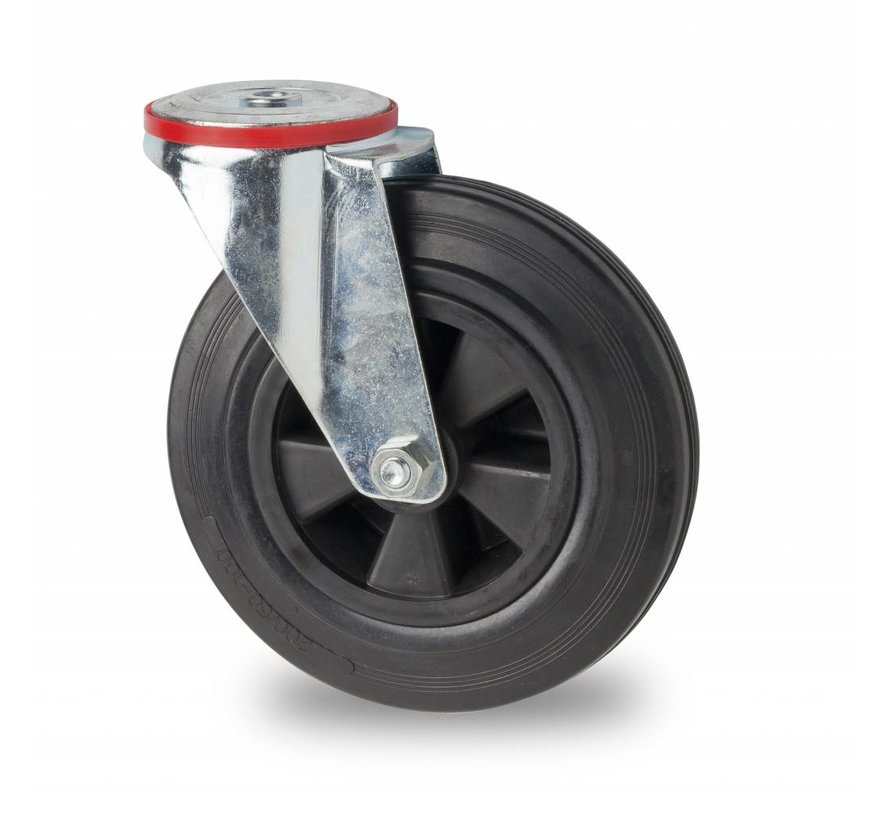

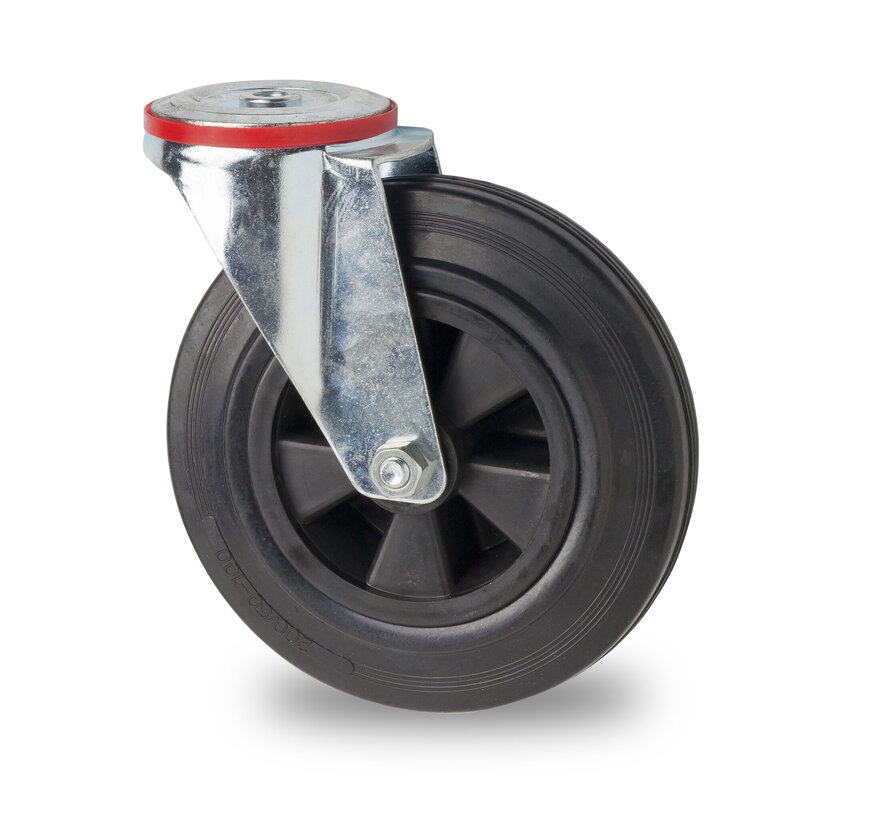

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

Product description

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

industrial solid rubber swivel castor

housing / bracket: pressed steel, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: rubber, black, with wheel centre from polyamide, roller bearing,

Benefits: The surfaceid rubber tires have a hardness of 90 ° Shore A and offer good handling, quiet rolling, they are shock and impact resistant, corrosion resistant and they have an average rolling resistance.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Almost every surface: uneven surfaces such as pavers, damaged floors and obstacles such as thresholds. The tire may leave black traces on the floor.
Suitable environment: Dry and not permanently humid. For mild acids and alkalics.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

industrial swivel castor from pressed steel, bolt hole, rubber, black, roller bearing, Wheel-Ø 80mm, 65KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140992800
  • EAN 8718116178460

Specifications

  • Non marking tread No
  • Wheel diameter (mm) 80
  • Wheel width (mm) 27
  • Load capacity (kg) 65
  • Overall height (mm) 97
  • Swivel offset (mm) 37
  • Swivel Radius 77
  • Bearing type roller bearing
  • Hardness of tread 90° Shore A
  • Tread description Standard black solid rubber tyre, extremely suitable for use under transport trolleys.
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Bolt hole diameter 13
  • Series 40.99
  • Tread black rubber tyre
