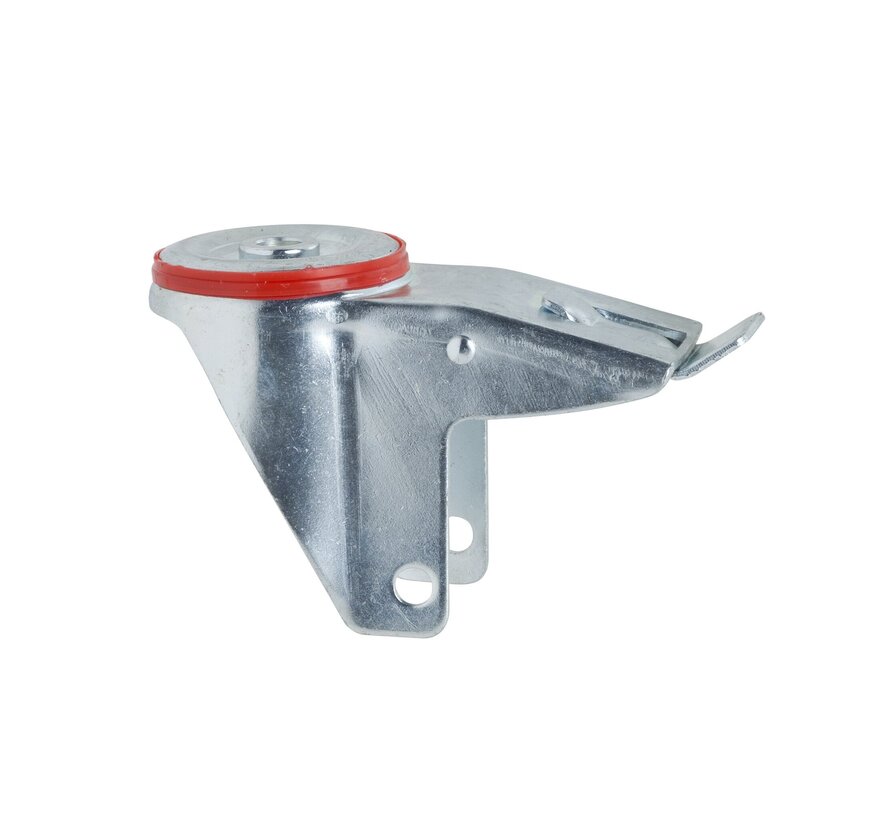

swivel castor fork with brake Ø200mm bolt hole 300KG
Product description
Quality & Service since 1946
Quality & Service since 1946
Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.
Product information
- SKU 140008203
- EAN 8718116099307
Specifications
- Wheel diameter (mm) 200
- Load capacity (kg) 300
- Swivel offset (mm) 60
- Fitting Bolt hole fixing
- Fork material Galvanised
- Fork Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
- Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
- Thickness fork legs 3
- Plate diameter 89
- Fork width (inner) 64
- Fork height 129
- Bolt hole diameter 13
- Axle bore-Ø in fork legs 12
- Series 40008
