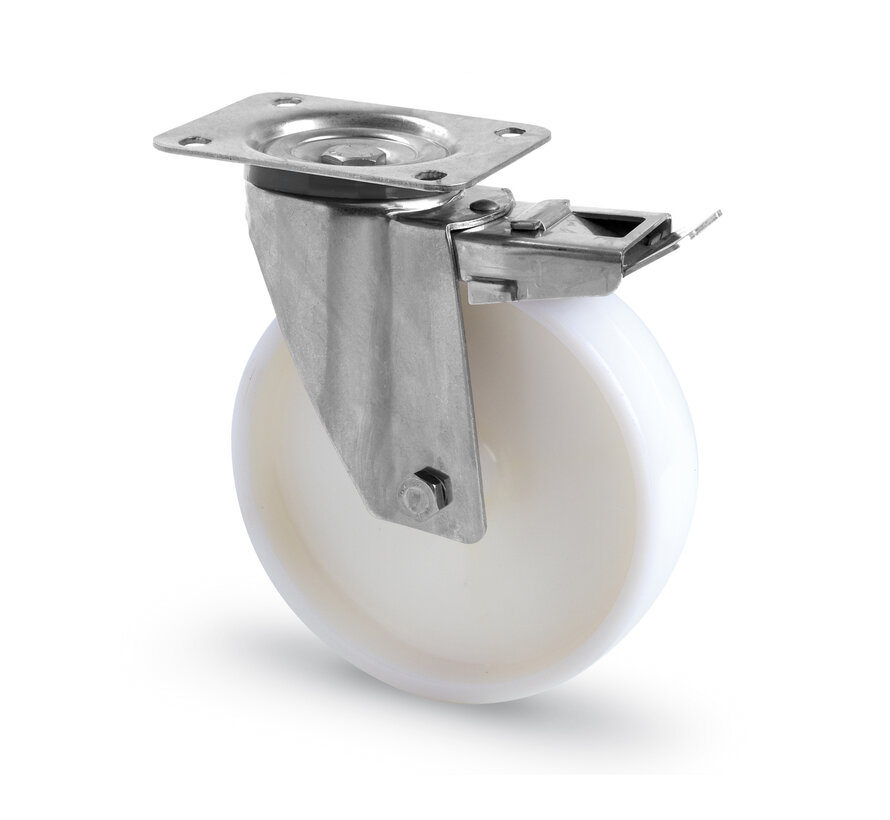

swivel castor with brake, Ø 100 mm, all-polyamide (PA6) wheel, 150KG

Product description

Stainless steel transport swivel castor with brake made of stainless steel (pressed), plate mounting, fully polyamide (PA6) wheel, sliding bearing, Wheel Ø 100mm, 150KG

Wheel: all-polyamide (PA6) wheel, sliding bearing,

Advantages: Polyamide wheels have low rolling resistance, offer good handling on flat surfaces, are impact and shock resistant and corrosion resistant.

Applications: Food industry, pharmaceutical industry, laundry containers, serving trolleys, bakeries, meat processors, butchers, slaughterhouses, fruit shops, greengrocers, hotels, restaurants, catering, café, fish processing plants, fish trade, supermarkets.

Suitable substrate:
Suitable environment: Dry as well as damp. With many chemicals and saturated steam.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 100 mm, all-polyamide (PA6) wheel, 150KG

Stainless steel transport swivel castor with brake made of stainless steel (pressed), plate mounting, fully polyamide (PA6) wheel, sliding bearing, Wheel Ø 100mm, 150KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 196810103
  • EAN 8718116199847

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 100
  • Wheel width (mm) 30
  • Load capacity (kg) 150
  • Overall height (mm) 128
  • Size of top plate (mm) 100x85
  • Topplate hole centres (mm) 80x60
  • Mounting hole diameter (mm) 8,5
  • Swivel offset (mm) 37
  • Swivel Radius 87
  • Tread description Polyamide (PA6) wheels
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 96.81
