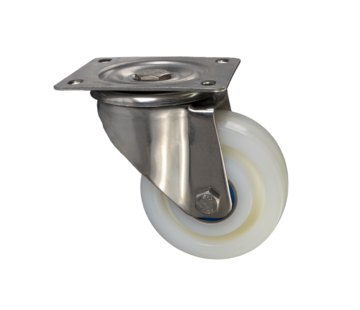

swivel castor with brake, Ø 125 mm, all-polyamide (PA6) wheel, 700KG

Product description

Stainless steel transport castor with brake made of stainless steel (pressed), plate mounting, fully polyamide (PA6) wheel, stainless steel precision ball bearing, Wheel Ø 125mm, 700KG

Wheel: all-polyamide (PA6) wheel, stainless steel precision ball bearing,

Advantages: For heavy transport on flat floors. Very low rolling resistance. Suitable for damp environments and hygienic applications.

Applications: Food industry, pharmaceutical industry, meat processing, fish processing.

Suitable substrates : Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry as well as humid. With many chemicals and steam.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 125 mm, all-polyamide (PA6) wheel, 700KG

Stainless steel transport castor with brake made of stainless steel (pressed), plate mounting, fully polyamide (PA6) wheel, stainless steel precision ball bearing, Wheel Ø 125mm, 700KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 194489125
  • EAN 8718116211495

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 125
  • Load capacity (kg) 700
  • Overall height (mm) 159
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 53
  • Swivel Radius 115
  • Tread description Polyamide (PA6) wheels
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Stainless steel AISI 304
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 94.48
