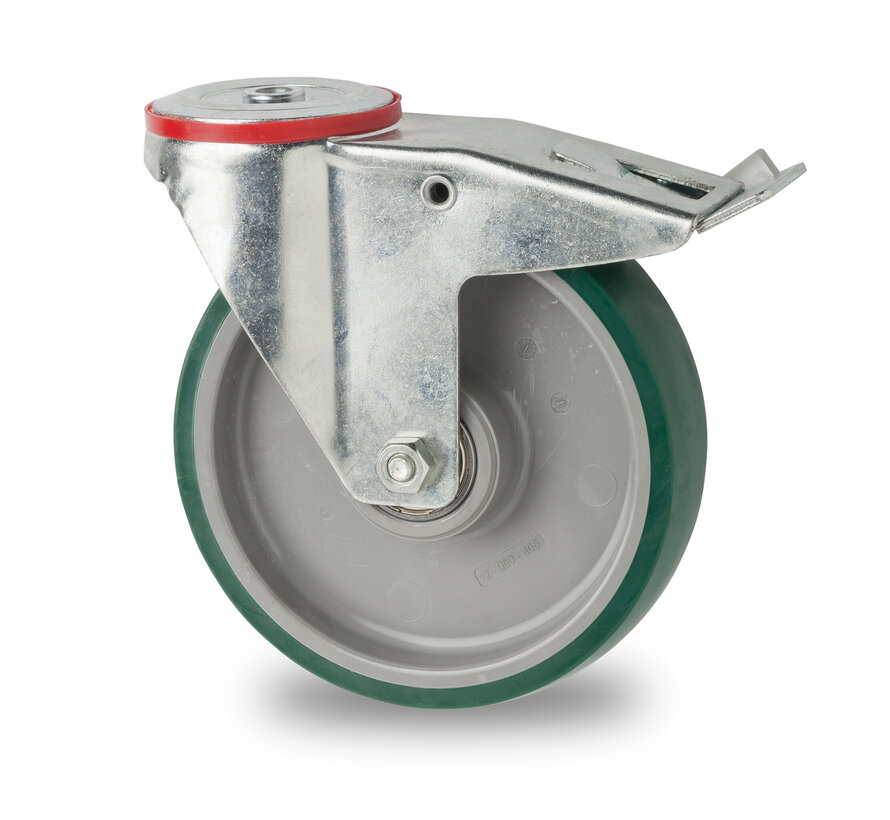

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

Product description

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

industrial polyurethane (PU) swivel castor with brake

housing / bracket: pressed steel, total lock, double ball race in swivel head, bright zinc plated, blue passivated, bolt hole
wheel: injected polyurethane, with wheel centre from polyamide, precision ball bearing, threadguards

Benefits: For medium and heavy transport on slippery floors for prolonged use under static load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

industrial swivel castor with brake from pressed steel, bolt hole, injected polyurethane, precision ball bearing, Wheel-Ø 125mm, 200KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 140986123
  • EAN 8718116186403

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 125
  • Wheel width (mm) 37
  • Load capacity (kg) 200
  • Overall height (mm) 155
  • Swivel offset (mm) 40
  • Swivel Radius 102
  • Bearing type precision ball bearing
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Bolt hole fixing
  • Fork material Galvanised
  • Fork Swivel fork with bolt hole fitting made of pressed galvanised sheet steel with double ball track in swivel head with dust seal and without central pin for extra stability
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Bolt hole diameter 13
  • Series 40.98
  • Tread injected polyurethane
