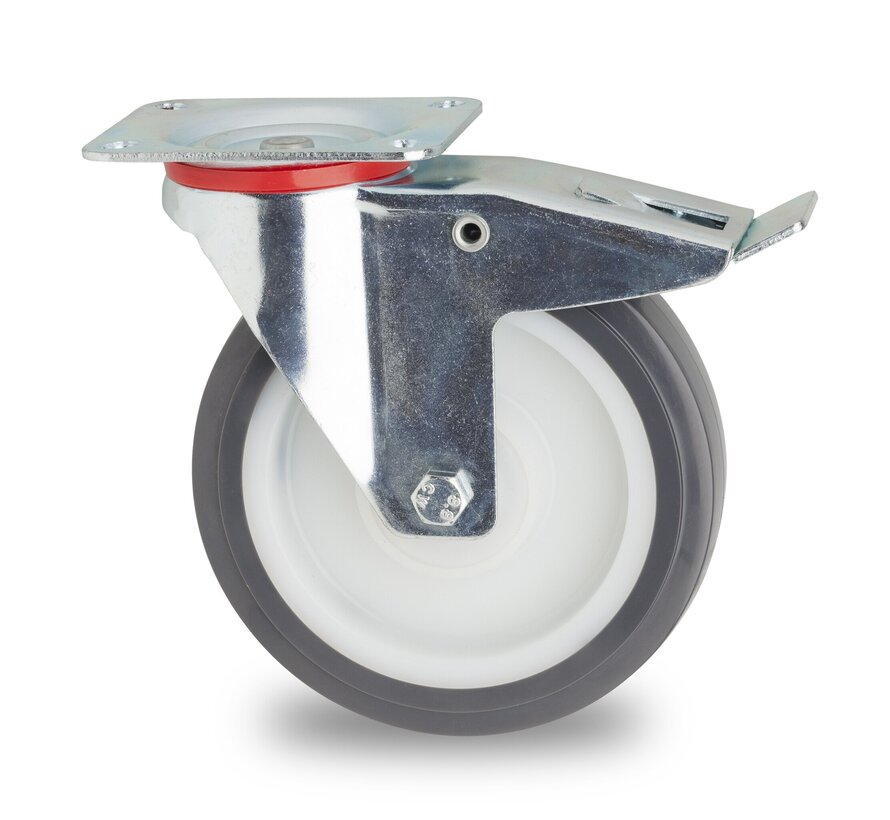

swivel castor with brake, Ø 160 mm, casted polyurethane, 300KG

Product description

Transport caster with brake made of pressed sheet steel, plate mounting, injection molded polyurethane, ball bearing, Wheel-Ø 160mm, 300KG

Wheel: injection-moulded polyurethane, with polyamide wheel core, ball bearing

Advantages: For medium-heavy transport on flat floors and for long-term static use under load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Hard and flat such as tiles, cement and coatings.
Suitable environment : Both indoors and outdoors. For alcohol, glycol, mineral oils and greases.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 160 mm, casted polyurethane, 300KG

Transport caster with brake made of pressed sheet steel, plate mounting, injection molded polyurethane, ball bearing, Wheel-Ø 160mm, 300KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 146956163G
  • EAN 8718116194453

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 160
  • Wheel width (mm) 50
  • Load capacity (kg) 300
  • Overall height (mm) 190
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 52
  • Swivel Radius 132
  • Hardness of tread 95° Shore A
  • Tread description Wheel with injected polyurethane (PU) tyre
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Brake Leading brake blocks both the swivelling and turning movement of the wheel. Made of galvanised pressed metal.
  • Series 46.95
