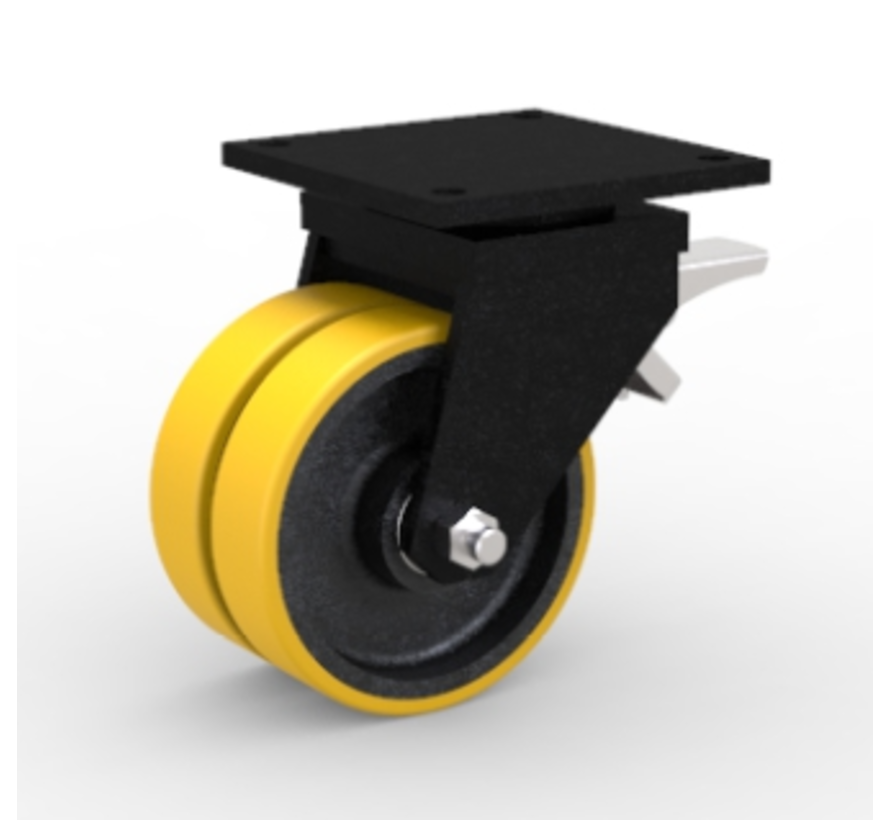

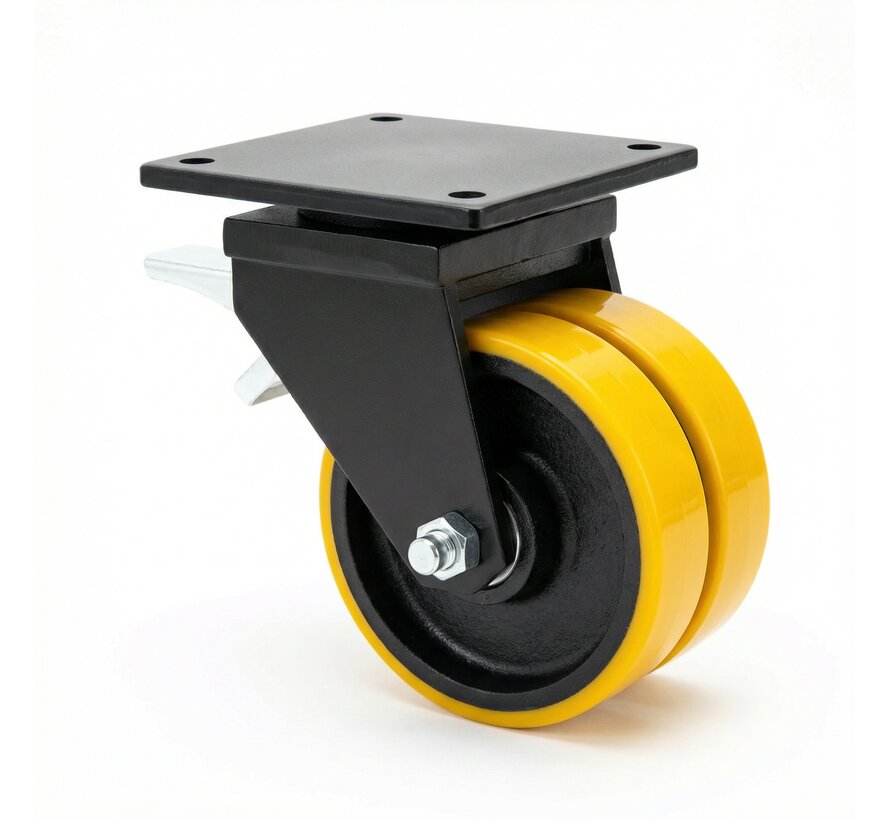

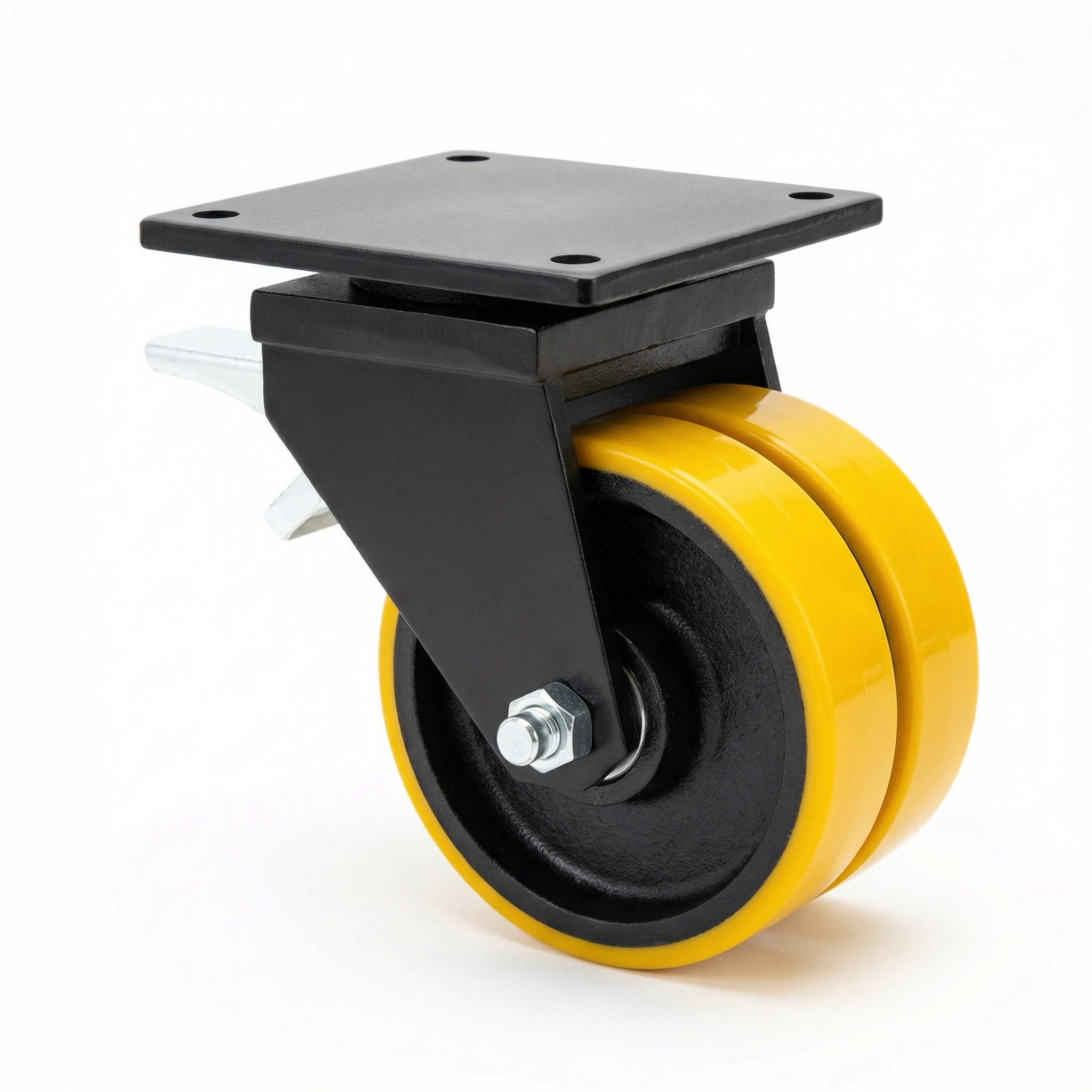

swivel castor with brake, Ø 200 mm, vulcanised polyurethane tyre, 1600KG

Product description

Heavy duty swivel castor made of welded steel fork, steel brake, plate mounting, vulcanized polyurethane tire, precision ball bearing, Wheel Ø 200mm, 1600KG

Fork: Steel welded with black coating, steel brake, sealed double ball swivel head, grease nipple, plate fitting

Wheel: Vulcanised polyurethane tyre, with cast iron core, precision ball bearing, double wheel mounting

Advantages: For very heavy transport on flat floors. Low rolling resistance. Relatively insensitive to notches and very wear-resistant.

Applications: Heavy material handling, heavy containers, automotive factories, petrochemical plants, heavy transport, ports, armed forces, aviation, bridge cranes, chemical plants.

Suitable substrate : Hard and flat such as tiles, cement and coatings.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake, Ø 200 mm, vulcanised polyurethane tyre, 1600KG

Heavy duty swivel castor made of welded steel fork, steel brake, plate mounting, vulcanized polyurethane tire, precision ball bearing, Wheel Ø 200mm, 1600KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 127646205
  • EAN 8718116201618

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200

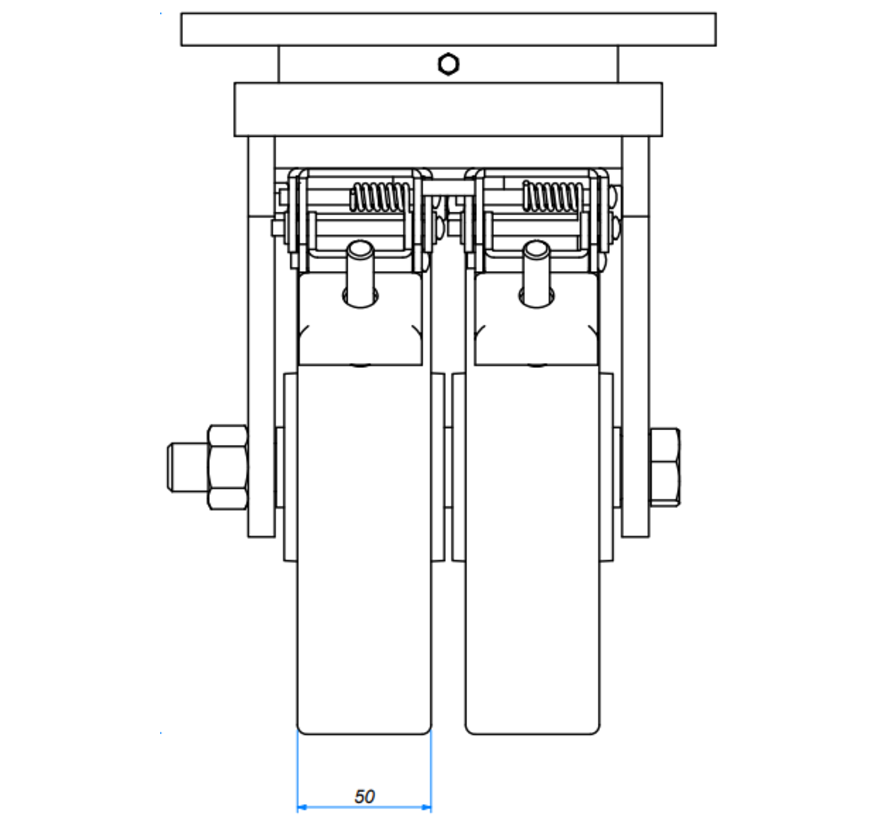

  • Wheel width (mm) 2x50
  • Load capacity (kg) 1600

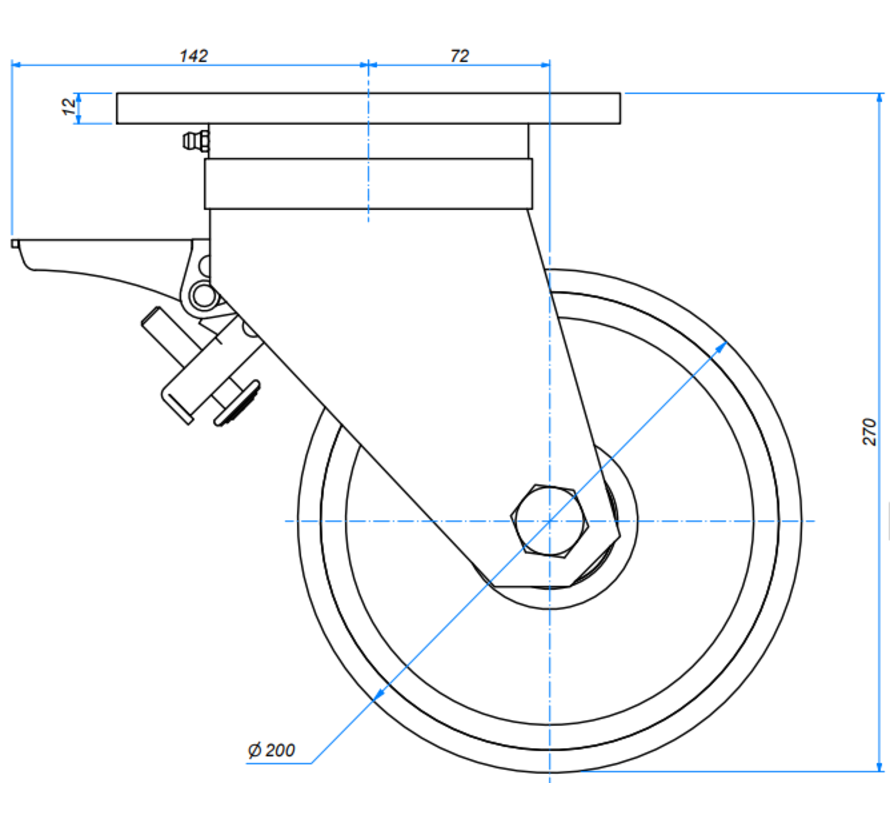

  • Overall height (mm) 270

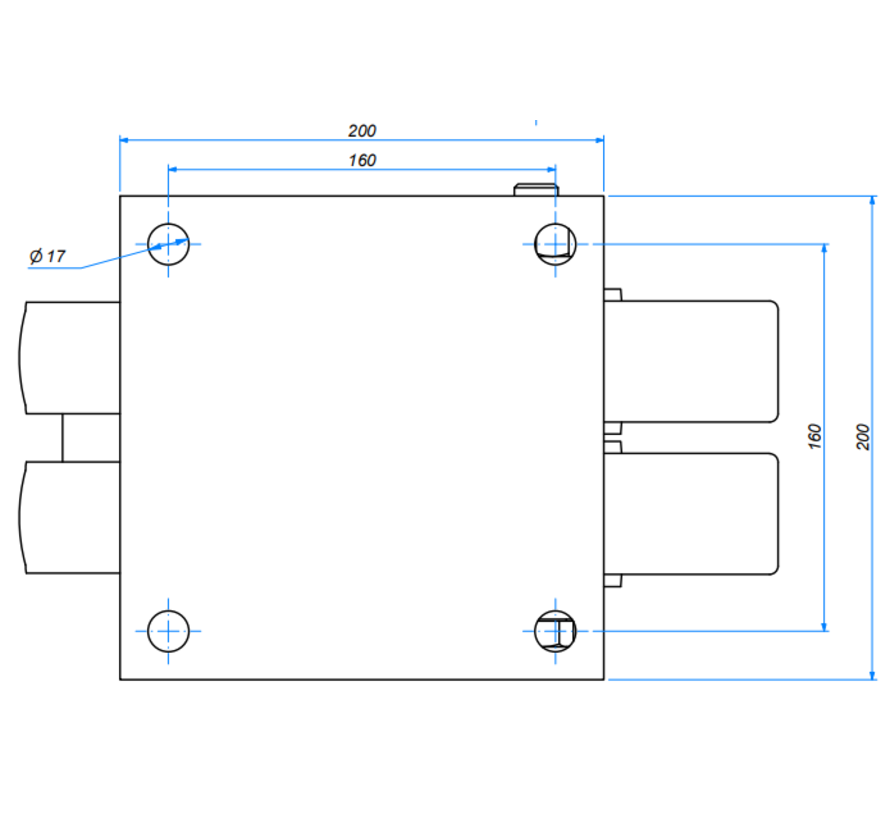

  • Size of top plate (mm) 200x200
  • Topplate hole centres (mm) 160x160
  • Mounting hole diameter (mm) 17
  • Swivel offset (mm) 72
  • Swivel Radius 172
  • Hardness of tread 91° Shore A
  • Temperature -20 / +80°C
  • Castor wheel type Double wheels
  • Fitting Plate mounting
  • Series 27.64
