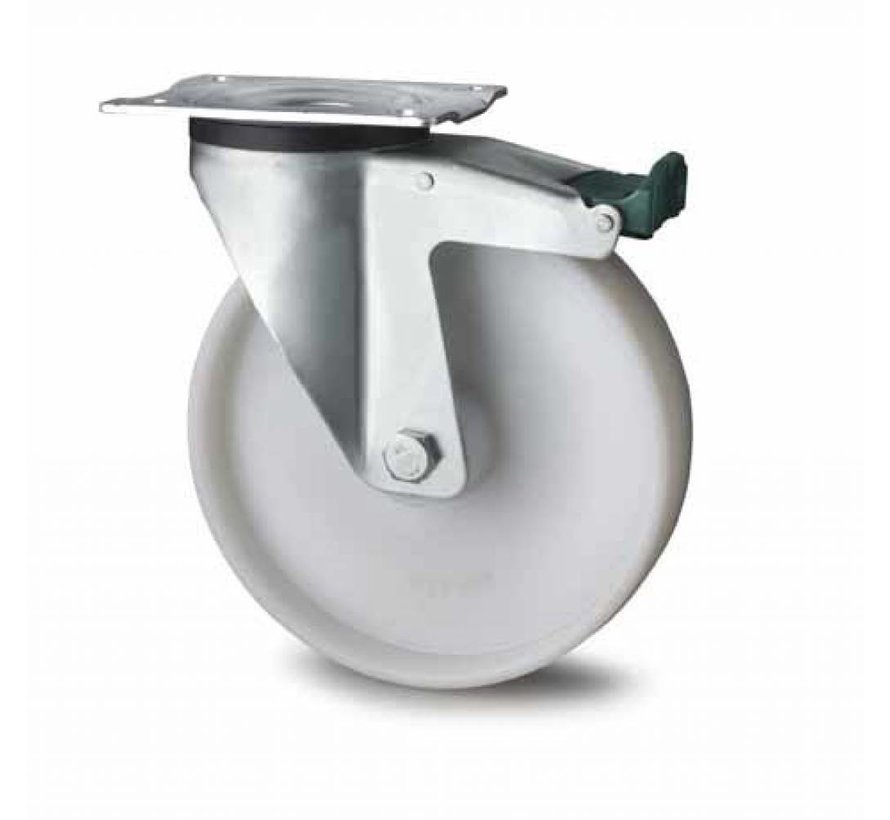

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

Product description

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

industrial fully nylon (PA6) wheel swivel castor with brake

housing / bracket: pressed steel, , double ball race in swivel head, bright zinc plated, blue passivated, plate fitting
wheel: fully nylon (PA6) wheel, roller bearing,

Benefits: The polyamide wheels have a low rolling resistance, offer good handling on smooth surfaces, they are shock and impact resistant and corrosion resistant.

Applications: Metal working industry, chemical industry, trolleys.

Suitable surface: Smooth and hard surface such as tiles, cement and coatings.
Suitable environment: Dry and not permanently humid. For many chemicals and for saturated steam.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

industrial swivel castor with brake from pressed steel, plate fitting, fully nylon (PA6) wheel, roller bearing, Wheel-Ø 200mm, 300KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 146302203
  • EAN 8718116103028

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200
  • Wheel width (mm) 50
  • Load capacity (kg) 300
  • Overall height (mm) 232
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 60
  • Swivel Radius 160
  • Bearing type roller bearing
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Swivel fork with plate fitting made of pressed galvanised sheet steel. With central bolt double ball race in swivel head and dust seal
  • Series 46.3
  • Tread fully nylon (PA6) wheel
