swivel castor with brake for waste bin, Ø 200 mm, grey elasticated rubber tyre, 400KG

Product description

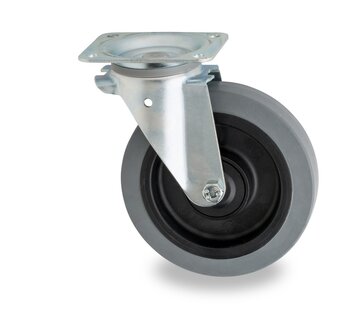

transport waste container swivel wheel with brake made of pressed sheet steel, plate mounting, elastic gray rubber tire, precision ball bearings, Wheel Ø 200mm, 400KG

Wheel: grey elastic rubber tyre, with polyamide wheel core, precision ball bearing,

Advantages: Versatile use with excellent rolling properties. Low-noise and vibration damping.

Applications: Industrial trolleys, material handling in factories, waste containers, transport containers, metal and chemical plants, medium-load roll containers, tool trolleys, warehouse trolleys.

Suitable surfaces: Almost any surface. Uneven surfaces such as clinkers, damaged floors and near obstacles such as thresholds.
Suitable environment : Dry and not permanently damp. With alcohol, glycol and many acids, bases and chemicals.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

swivel castor with brake for waste bin, Ø 200 mm, grey elasticated rubber tyre, 400KG

transport waste container swivel wheel with brake made of pressed sheet steel, plate mounting, elastic gray rubber tire, precision ball bearings, Wheel Ø 200mm, 400KG

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service

Product information

  • SKU 151566208G
  • EAN 8718116107040

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 200
  • Wheel width (mm) 50
  • Load capacity (kg) 400
  • Overall height (mm) 238
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Swivel offset (mm) 59
  • Swivel Radius 159.0
  • Bearing type Ball bearing
  • Hardness of tread 80° Shore A
  • Tread description Wheel with grey elastic rubber tyre (vulcanised). Does not leave streaks on your floor.
  • Temperature -20 / +60°C
  • Castor wheel type Swivel castor with brake
  • Fitting Plate mounting
  • Fork material Galvanised
  • Brake Brake blocks both the turning and swivelling movement of the wheel
  • Series 151.56G
  • Tread Solid rubber
