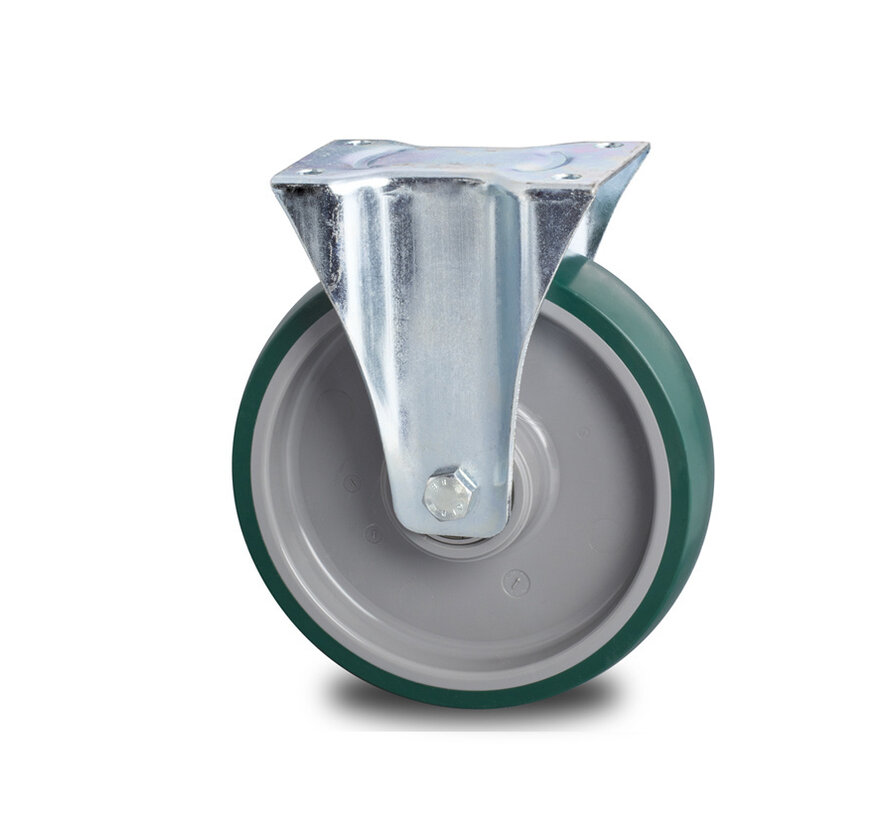

Industrial Fixed castor from pressed steel, plate fitting, Injected polyurethane, precision ball bearing, Wheel-Ø 160mm, 300KG

Product description

Industrial Fixed castor from pressed steel, plate fitting, Injected polyurethane, precision ball bearing, Wheel-Ø 160mm, 300KG

Industrial, Polyurethane (PU) Fixed castor

Housing: pressed steel, bright zinc plated, blue passivated, plate fitting
Wheel: Injected polyurethane, with Wheel centre from Polyamide, precision ball bearing

Features: For medium and heavy transport on slippery floors for prolonged use under static load. Very low rolling resistance. Relatively insensitive to damage and wear.

Applications: Industrial carts, Materials handling in factories, Waste containers, Transport containers, Containers, Metal, Chemical companies, Medium load roll containers, Public services, Tool trolleys, Magazine carts.

Suitable surface: Smooth and hard surface such as tile, cement and coatings.
Suitable environment: Both indoors and outdoors. For alcohol, glycol, mineral oils and fats.

Quality & Service since 1946

Quality & Service since 1946

Our quality is creating an easier work-life for the user of the wheel.
Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

More information

Industrialwheels.com is the range of the most popular wheels from our group of companies. Over two hundred fifty employees focus on manufacturing and developing high-quality wheels for the European market.

Industrial Fixed castor from pressed steel, plate fitting, Injected polyurethane, precision ball bearing, Wheel-Ø 160mm, 300KG

Industrial Fixed castor from pressed steel, plate fitting, Injected polyurethane, precision ball bearing, Wheel-Ø 160mm, 300KG

within 3 working days

  • We want to make your work-life easier Tooltip Just tell us what you need
  • Fast delivery
  • 3D CAD Models
  • Engineering service
  • Estimated time: within 3 working days

Product information

  • SKU 246986160
  • EAN 8718116122807

Specifications

  • Non marking tread Yes
  • Wheel diameter (mm) 160
  • Wheel width (mm) 50
  • Load capacity (kg) 300
  • Overall height (mm) 190
  • Size of top plate (mm) 135x110
  • Topplate hole centres (mm) 105x80
  • Mounting hole diameter (mm) 11
  • Bearing type precision ball bearing
  • Hardness of tread 95° Shore A
  • Castor wheel type Fixed castor wheel
  • Fitting Plate mounting
  • Fork material Galvanised
  • Fork Fixed fork made of pressed galvanised sheet steel
  • Series 46.98
  • Tread injected polyurethane
